POWER CURBERS 5700-D | Curb & Gutter Machine
ConditionNew
New

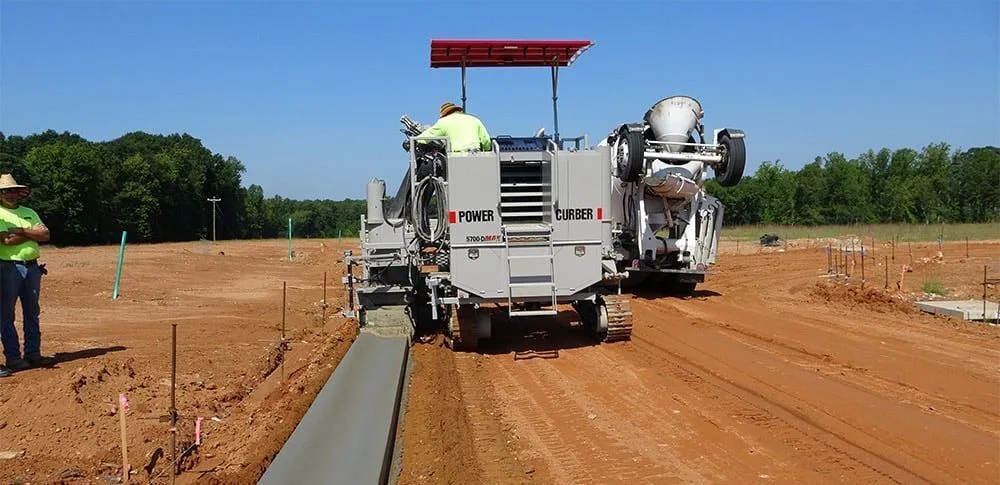

The 5700-D is the latest generation of the #1 selling concrete slipform machine in the world. The upgraded Power Curbers SlipSmart Control Solution provides contractors a new level of responsiveness, simplicity and precision. The compact size of the 5700-D makes tight jobs easier to do than ever. The Power Curber 5700-D Curb & Gutter Machine is a “One-Machine Solution” that can easily handle curb & gutter work, highway safety barriers, irrigation ditches, sidewalks and other special applications.
Power Curbers has been the industry leader in the production of slipform concrete curb machines for more than 65 years. Our 5700-D is the number one-selling Curb & Gutter Machine in the world, for many reasons:
• Compact profile can fit in tight spots such as parking lot corners and cul-de-sacs
• Front-track steering that simplifies turns
• Low-center-of-gravity design that’s stable even on rough terrain
• Auger Conveyor system that moves concrete faster and can hold up to a cubic yard of concrete at a time for radius & cul-de-sac work
• Dual-side pouring option
• New SlipSmart Control System
• Control panel improvements including “all up” jog switch, master vibrator scale knob, weatherproof switches, trimmer “on” light, cup holders and more
SLIPFORM PAVING
Curb/Sidewalk Width: Maximum 7’ (2 m) in the offset position or 10’ (3 m) in the center pour position.
- Option: Maximum 8’ (2.5 m) wide offset or 12’ (3.65 m) center pour with MAX Package.
Barrier/Parapet Height: Maximum 5’ (1.5 m) tall
- Option: Maximum 8’ (2.5 m) tall with MAX Package
Mold: One, up to 32” (813 mm) wide, with quick release interchangeable hopper, is standard.
ENGINE
Type: Cummins QSB4.5-130C diesel 4-cylinder/4-stroke, turbocharged, Tier 4f emissions compliant. Optional Tier III emissions-compliant engine available where regulations allow.
Power: 130 HP (97 kW) @ 2400 RPM
SERVICE CAPACITIES
Fuel Tank: 66 gallons (250 liters)
Hydraulic Tank: 50 gallons (189 liters)
CONTROLS
Power Cubers SlipSmart Control System: Provides electronic over hydraulic control for grade, forward and reverse steering, and slope.
Features: Adjustment for sensitivity and deadband offering the operator accuracy and feel, without complexity; self diagnostics; and automatic shut-off for sensors that leave the stringline. Networked Digital Control with autoslope, cruise control, 3-D readiness, advanced set-up flexibility, and a large graphic display.
Convenience & Safety: Synchronized ON/OFF for vibrators & crawlers. Five Emergency-Stop switches and a Horn for operator and chute man.
Light Kit: Four post-mounted spot lights and engine enclosure light.
TRIMMER
Cutting Width: 42” (1070 mm), up to 78” (1980 mm) with optional extensions. Carbide teeth.
Cutting Head Diameter: 21” (530 mm)
Maximum Trim Depth: 6” (150 mm)
Lateral Shift: 80” (2030 mm) hydraulically
Vertical Shift: 25” (635 mm) – 16” (406 mm) hydraulically, 9” (228 mm) mechanically
Options: Trimmer Extensions in 6” (152 mm), 12” (305 mm), and 24” (610 mm) widths.
AUGER CONVEYOR
Drive: Direct drive with high-torque motor; variable speed and reversible.
Volume: 1 yd3 (0.75 m3) capacity and 0-2 yd3/min (0-1.5 m3/min) rate of movement.
Positioning: Pivots, hydraulically tilts and slides 24” (610 mm). Discharge chute swivels, providing additional flexibility in setup.
Size: 12’ (3.7 m) long and 14” (356 mm) diameter.
Features: Heavy-duty cast flighting with lid for full enclosure.
VIBRATION
Vibrator Circuits: Six hydraulic circuits with variable speed and independent control
Vibrators: Two, with adjustable mounts
Options: Extra vibrator(s) with hanger and extra vibrator circuits (three)
HYDRAULIC ADJUSTABLE OFFSET
Lateral Shift: 24” (610 mm) hydraulically with positive mechanical locking.
Vertical Shift: 25” (635 mm); 16” (406 mm) hydraulically, 9” (228 mm) mechanically.
Option: Hydraulic Mold Offset Lock
WATER SYSTEM
Washer: 2,000 psi (138 bar or 13.8 Mpa) high-pressure system with trigger control and adjustable spray nozzle
Tank: Stainless steel with 132 gallons (500 liters) capacity
Options: Low pressure system, Mold misting kit, Charge hopper water kit, Auxiliary water tank (92 gal / 348 liters)
CRAWLERS & ELEVATION POSTS
Type: Three hydraulically powered crawler tracks with planetary gear reduction
Tracks: 12” (305 mm) wide steel pads
Speed: Travel at 0-110’/min (33.5 m/min), 0-70’/min (21 m/min) with MAX Package. Pouring at 0-50’/min (15 m/min), 0-35’/min (10.5 m/min) with MAX Package.
Minimum Turning Radius: Left at 2’ (610 mm), right at 20’ (6.1 m).
Post Extension: 36” (914 mm) hydraulic cylinders
Straddle Leg: 22” (559 cm) of hydraulic side shift adjustment
Options: Polyurethane track pads and all-crawler steering.
OPTIONAL EQUIPMENT
Quick Connect Mold Mount: Hydraulically operated
Hydraulic Front Grade Sensor Arm: Operator controlled
Dual Side Pouring: Allows pouring from either the left or right side
Barrier Mold Lift: Hydraulically operated, with 48” (1200 mm) lift, independent of the machine’s post extension.
Weight Pod: 1,980 lbs. (900 kg)
Post Hole Digger: 12” (305 mm) auger diameter. Maximum hole depth is 34” (864 mm). Requires optional Quick Connect Mold Mount.
Center Pour Paving Kit: Available in many widths and configurations.
Stringline Accessories: Stakes, rods, clamps, string, radius materials, winches, etc., available individually or in kits.
NET WEIGHT
Machine: 24,700 lbs (11,200 kg). Weight is approximate and will vary depending on optional accessories and size of mold.
Full Water Tank: Add 1,100 lbs (500 kg)
Full Fuel Tank: Add 480 lbs (215 kg)
Quick Connect: Add 750 lbs (340 kg)
Dual Side Pouring: Add 600 lbs (270 kg)
MAX Package: Add 2,500 lbs (1,135 kg)
Tier III Engine: Subtract 300 lbs. (136 kg)
TRANSPORT DIMENSIONS
Length: 20’ (6.1 m).
- Add 8” (203 mm) for MAX Package.
- Add 16′ (4.9 m) for 28′ Belt Conveyor
Width: 8’ 6” (2.6 m)
Height: 8’1” (2.5 m) without exhaust stack.
- Add 5” (127 mm) for MAX Package.
| Curb & Gutter Mold up to 32 inch Width |
| D-Rings for Chain Down Secure |
| Hydraulic Front Grade Sensor Control |
| Hydraulic Lock for Mold Mount |
| Quick Connect Mold Mount |
| Sringline Kit 5000 ft string + 200 stakes, rods, clamps |
| Start-up Training 3-days |
