Power Curbers PC150 21 HP Version
ConditionNew
New
Power Curbers pioneered the extruded curb concept in the early 1950s and has been building extruders for over 65 years. For jobs that require less expensive scab-on curb, the 150 extruder is ideal.

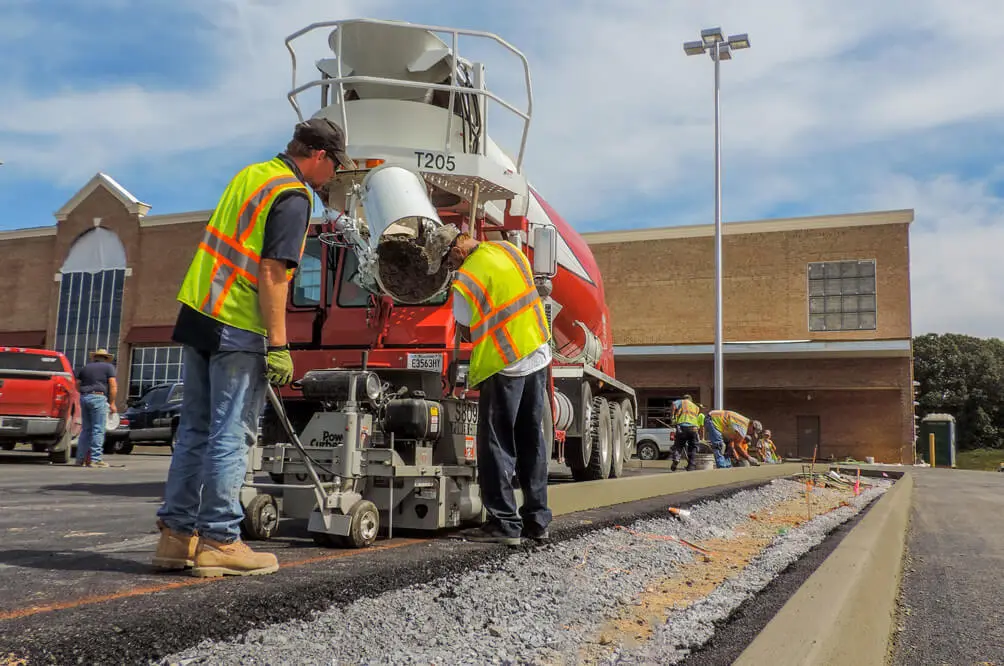

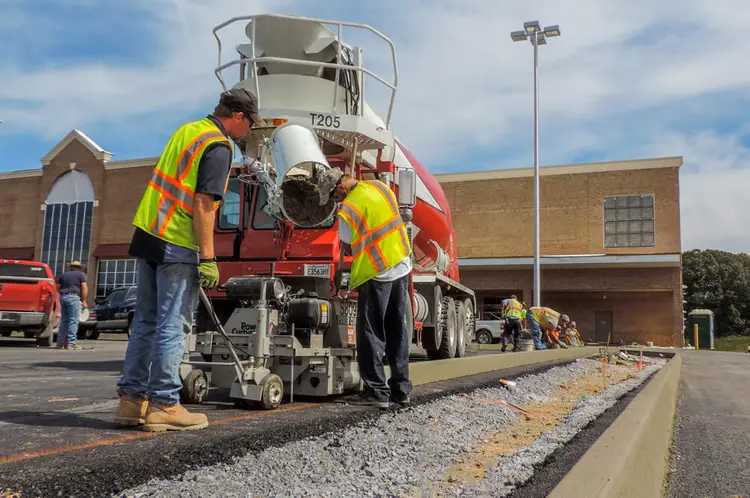

The mix is fed into the hopper either directly from the truck chute or by wheelbarrow, and is then forced under pressure through a specially designed mold. The result is a freestanding, structurally sound curb with a smooth finish.
Extruded curb is best placed on top of existing pavement or on a smooth, flat, 95% compacted sub-grade. The 150 extruder can be used for either concrete or asphalt curbs.
21 HP VERSION --STANDARD EQUIPMENT
Honda GX630R twin cylinder engine with 21 HP and electric start.
Single auger drive with steel compaction chamber.
6" hollow shaft auger (5/8" I D) to allow for longitudinal rebar to be
fed into the curb
One curb mold up to 12" (30.5 cm) wide and 12" (30.5 cm) tall.
Customer choice of pneumatic tires or hard rubber wheels. Three
lifting jacks
Front wheels shift sideways for pouring over adhesive or for
inserting rebar.
One spare auger
Shipping weight: 950 lbs. (431 kg)
11.8 HP VERSION --STANDARD EQUIPMENT
Honda GX 390 overhead valve engine. 11.7 HP with recoil start
Single auger drive with steel compaction chamber.
6" hollow shaft auger (5/8" I D) to allow for longitudinal rebar to be
fed into the curb
One curb mold up to 12" (30.5 cm) wide and 12" (30.5 cm) tall.
Customer choice of pneumatic tires or hard rubber wheels. Three
lifting jacks
Front wheels shift sideways for pouring over adhesive or for
inserting rebar.
Shipping weight: 800 lbs. (363 kg)
OPTIONS
Extra mold up to 12" (30.5 cm) width and height. …………………………………… $700
Cast auger in lieu of steel hollow shaft auger* …………………………………………. $275
* recommended for asphalt applications
Removable hopper insert to restrict throat when pour asphalt.....…………… $145
Extra auger: steel…........................................................................................ $300
Extra auger: cast…........................................................................................ $425
ENGINE Honda GX630R, 4-cycle air-cooled, electric start
Power: 20.8 hp (15.5 kW) @ 3600 rpm
Optional: Honda GX390, 4-cycle air-cooled, recoil start
Power: 11.7 hp (8.7 kW) @ 3600 rpm
DRIVETRAIN
Centrifugal clutch with V-belt drive and chain-driven auger
Single auger drive with compaction chamber
STEERING & ELEVATION
High-flotation design with 9 pneumatic tires and 3 lifting jacks
Option: Hard rubber wheels in lieu of pneumatic tires
AUGER
6” hollow-shaft steel auger with 5/8” interior dimension. Can be used for feeding longitudinal rebar through the mold (3/8” [10 mm] maximum rebar diameter).
Options: 5” hollow-shaft steel auger, for small profile molds; 6” cast auger (solid shaft). Spare augers available in all sizes.
MOLD
1 curb mold included
Option: Extra molds available
PAVING SPECIFICATIONS
Paving Speed (Maximum):
20.8 hp (15.5 kW): 25 feet/minute (7.6 m/min)
11.7 hp (8.7 kW): 15 feet/minute (4.6 m/min)
Curb Width: 12” (30 cm) maximum
Curb Height: 12” (30 cm) maximum
Clearance: Within 1” (2.5 cm) of obstructions
Radius (minimum): 24” (60 cm)
HOPPER CAPACITY
4 cubic feet (0.1 cubic meters)
DIMENSIONS
Length: 6’ 4.5” (1.94 m) with steering handle upright (8’ 5” [2.57 m] with steering handle in the brake position)
Width: 30” (76 cm)
Height: 32.5” (83 cm)
Weight: 20.8 hp 950 lb; 11.7 hp 800 lb
