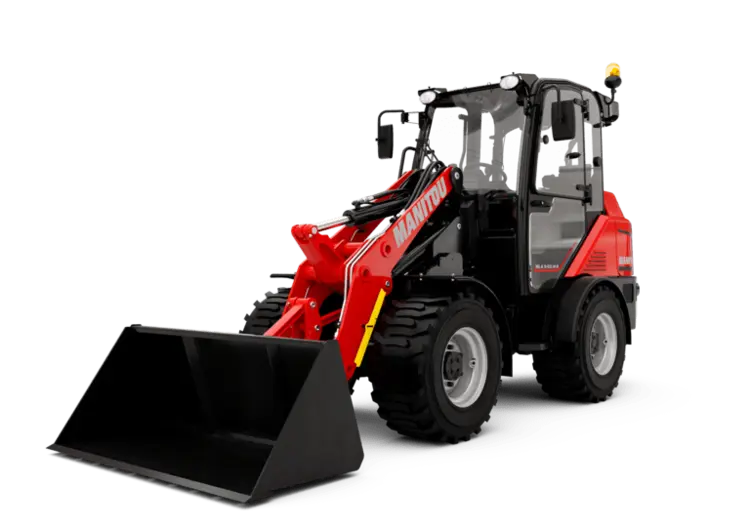

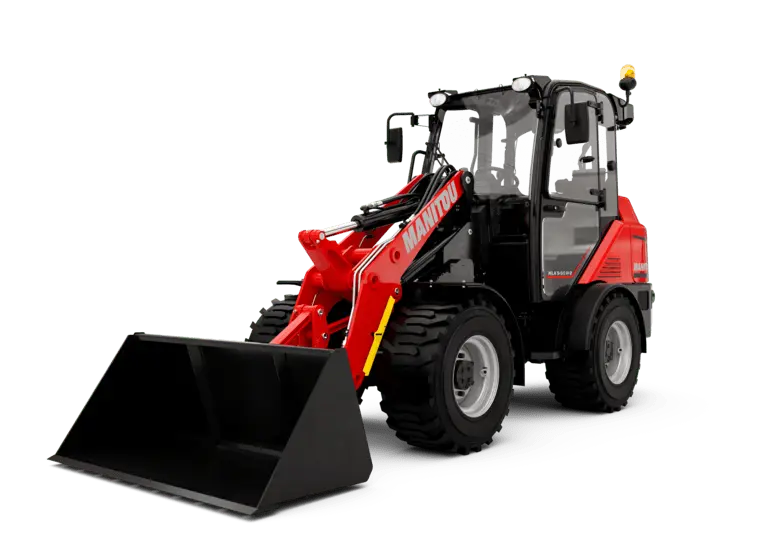

New - Build-To-Order MANITOU MLA 5-60 H-Z | Compact Wheel Loader
Have one to sell?
ConditionNew
New
The MLA 5-60 H-Z is the smallest of our lineup to have our Z-kinematic loaderarm, giving you unmatched break-out forces. The latest of our Articulated Loader lineup comes with an open canopy with additional options available in 2021. The 2-speed hydrostatic transmission, 100% diff lock and hand throttle is standard, making the MLA 5-55 have all the features you need for excellent performance and comfort. Small machine, big power.
Capacities
Static tipping load with bucket (straight) 4828 lb
Static tipping load with bucket (full turn) 3735 lb
Static tipping load with forks (straight) 3411 lb
Static tipping load with forks (full turn) 2654 lb
Max. height of bucket pivot point 10 ft 4 in
Max. lifting height (below forks) 9 ft 9 in
Reach at max. height 1 ft 5 in
Breakout force with bucket. 4329.46 daN
Weight and dimensions
Unladen weight (with forks) with 4-post canopy 7470 lb
Overall length to carriage (with hitch) 13 ft 9 in
Wheelbase 69 in
Overall width of 4 posts canopy 4 ft
Overall cab width 4 ft
Overall height with 4 posts canopy 7 ft 7 in
Overall height with cab 7 ft 7 in
Tilt-up angle 39.90 °
Tilt-down angle 44.70 °
External turning radius (over tyres) 10 ft 6 in
Articulation angle 45 °
Overall width less bucket 4 ft 10 in
Ground clearance 10 in
Performances
Crowd 2.52 s
Dump 1.85 s
Engine
Engine brand Deutz
Engine model TD 2.2 L3
Engine norm Stage V / Tier 4 Final
Number of cylinders / Capacity of cylinders 3 - 21 in³
I.C. Engine power rating / Power 60 Hp / 45.50 kW
Max. torque / Engine rotation 148 ft/lbs / 2400 rpm
Engine cooling system 2 radiators water + hydraulic oil
Transmission
Transmission type Hydrostatic
Number of gears (forward / reverse) 2 / 2
Max. travel speed (may vary according to applicable regulations) 18 mph
Differential lock Front and rear locking of the machine
Parking brake Manual
Hydraulics
Hydraulic pump type Gear pump
Hydraulic flow - Pressure 15 US gpm / 3046 PSI
High-Flow Option (l/min) 19 US gpm
Drive hydraulic system pressure 6092 PSI
Tank capacities
Hydraulic oil 12 US gal
Fuel tank 22 US gal
Miscellaneous
Safety cab homologation ROPS - FOPS cab (level 1)
