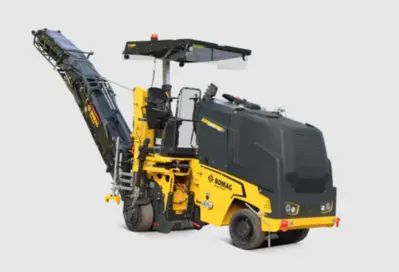

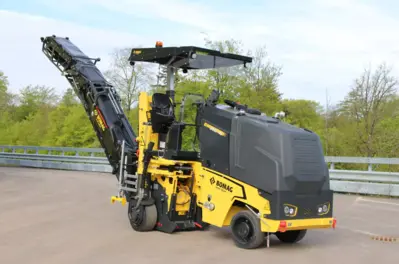

BM 500/15-2 cold planer: The next level in flexibility and productivity
Have one to sell?
ConditionNew
New
Clever details in the second generation

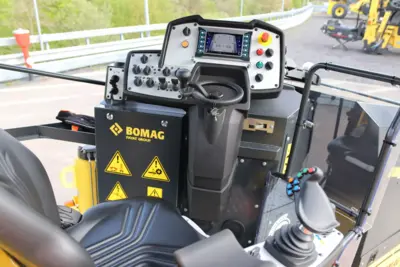

The second generation of compact planers are setting the standards when it comes to ergonomics and productivity. Thanks to the 45°-swivel comfort seat, the completely overhauled operating concept provides a good overview – of both the loading truck and the left side plate and milling edge. At the heart of the new operating concept is the 7-inch full graphic levelling and operating panel with intuitive design. The swivel angle of the conveyor belt has been increased again to 2 x 30° with the same belt width. It can be folded hydraulically to the optimum transport.
Fields of application

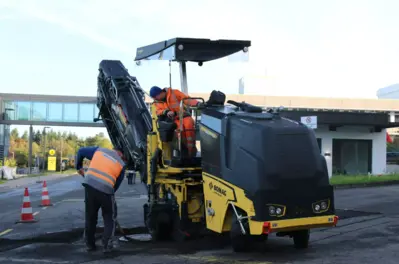

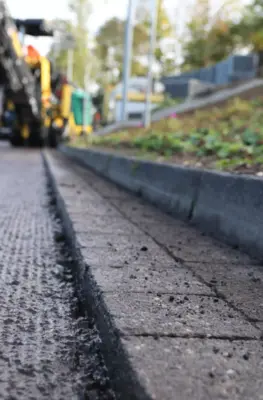

Asphalt milling is a method for removing specified layers of asphalt road pavements.

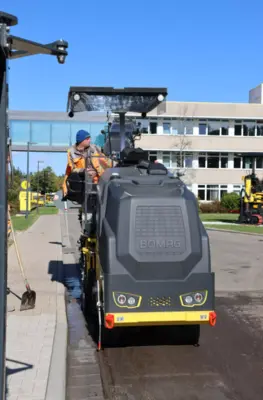

BOMAG cold milling machines are designed for selective milling of lane and ground linings made up of a wide range of asphalt and concrete compounds. The different models are particularly suited for repairs or the complete removal of motorways and major federal roads, and for rural roads and inner-city work including work on roundabouts. With different working and milling depths, large areas can be removed quickly and completely in one work stage.
Standards
Milling technology

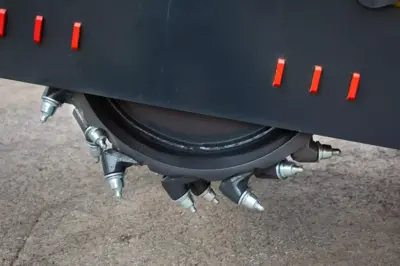

Milling Drum LA15
3 Milling Drum speeds
Proportional adjustable water injection
Automatic water-saving device
Wear-free, digital Milling-depth-display
Proportional Milling-depth-adjustment
Two proportional speeds for hight-adjustment
Additional hight-adjustment at joystick for one-hand-operation

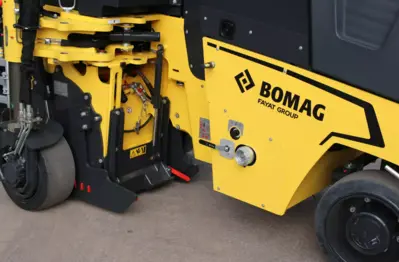

Hydraulically operated side-plates
Hydraulically operated front mouldboard
Rear mouldboard with adjustable pre-load-pressure
Right side-plate for fast Drum-exchange
Automatic load-control
Automatic distribution of traction
Drive train
3-wheel-drive up to 6 km/h
4-wheel-drive up to 10 km/h

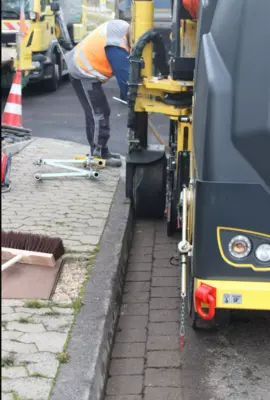

Right rear wheel foldable from operator place
Variable transport speed
Variable milling speeds
Speed-pre-setting with 12 speeds
Mechanical drum drive
Operation comfort

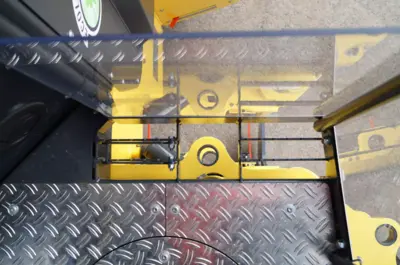

Fully vibration-isolated operator-platform
Comfort-workstation for sitting operation
7“-full-graphic-display
Ergonomic adjustable operator seat Spring loaded, 45° slewing angle
Seat-heating
Ergonomic adjustable dash-board
Height- adjustable arm-rest with integrated ergonomic operation panel
Self-explanatory, well-arranged dashboard
Large storage at ground level
All service- and maintenance-points are concentrated on right-hand side
Hydraulic multi-faster-coupling for conveyor operation
Safety & environmental protection
Whisper-package for noise elimination
Liquid cooled engine following latest emission rules
Two driving lights
Variable to place working-lights
Rotary-beacon
Mirror
CE-conform safety-package with emergency-stop-switches
Back-up-alarm
Vandalism protection
