Compact class cold planer BM 1200/35-2: The new dimension in efficiency.
Have one to sell?
ConditionNew
New
BOMAG planer: The future of cold planing is here.

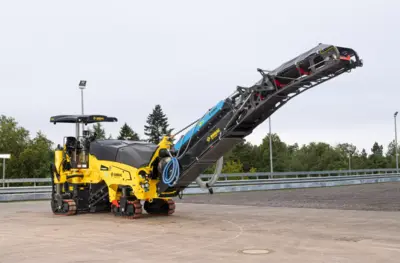

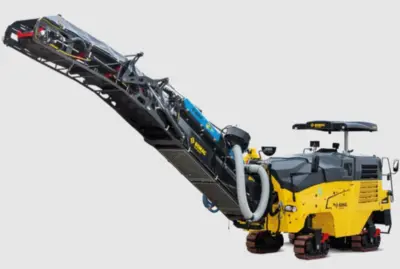

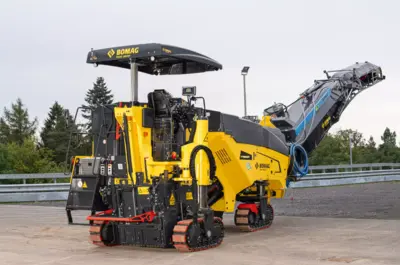

The cold planer BM 1200/35-2 with enhanced swivelling mechanism is designed for the selective milling of road and ground surfaces. Its clear arrangement and maneuverability make it particularly suitable for country roads, inner-city work and roundabouts. The maximum milling depth of 330 mm and the lateral arrangement of the milling roller allow for milling right up to the kerb or walls. The rear right-hand track drive can be automatically swivelled to a position in front of the milling drum for this purpose.
Fields of application

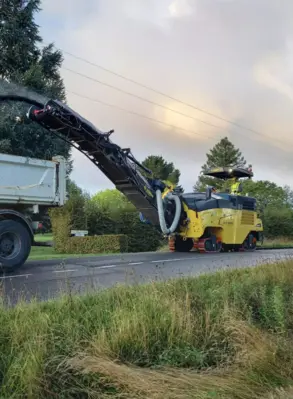

Asphalt milling is a method for removing specified layers of asphalt road pavements.
BOMAG cold milling machines are designed for selective milling of lane and ground linings made up of a wide range of asphalt and concrete compounds. The different models are particularly suited for repairs or the complete removal of motorways and major federal roads, and for rural roads and inner-city work including work on roundabouts. With different working and milling depths, large areas can be removed quickly and completely in one work stage.
Standards
Milling technology
Milling Drum LA15
BOMAG BMS 15 exchangeable toolholder
3 Milling-Drum-speeds
Proportional adjustable water injection
Automatic water saving device
Water filling pump
Wear-free, digital Milling depth display
Proportional Milling depth adjustment
Two proportional speeds for Milling-depth-adjusment
Hydraulically operated side-plates
Hydraulically operated front mouldboard
Rear mouldboard with adjustable pre-load-pressure

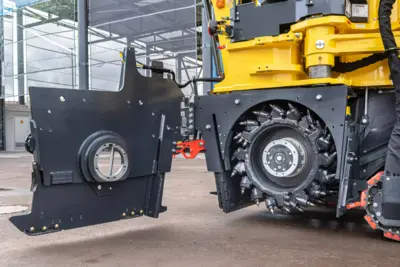

Right side-plate for fast Drum-exchange
Automatic load-control
Automatic distribution of traction
Hydraulically foldable Conveyor
Drive Systems
4-Crawlers
Swivel mechanism:
Full automatic swivelling of the rear right chain with 5,000 hrs./ 60 M warranty
Rear right crawler steerable
Variable transport speed
Variable operating speed
Mechanical Drum-drive
Operation comfort

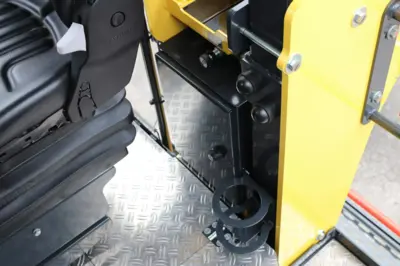

Fully vibration-isolated operator-platform
Comfort-workstation for sitting operation
Ergonomic comfort seat, which can be rotated 45° in two directions
Ergonomic adjustable steering wheel / column

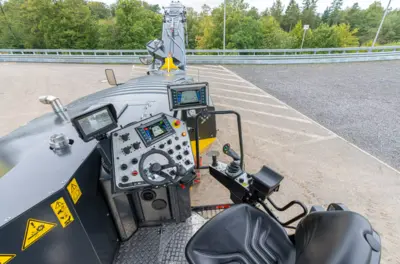

Height- adjustable arm-rest with integrated ergonomic operation panel
Self-explanatory, well-arranged dashboard
Large storage at ground level
High performance 3-way water pump
Service- and maintenance-points ergonomic concentrated
Secure and conveniently accessible service and maintenance points
Safety & environmental protection
Whisper-package for noise elimination

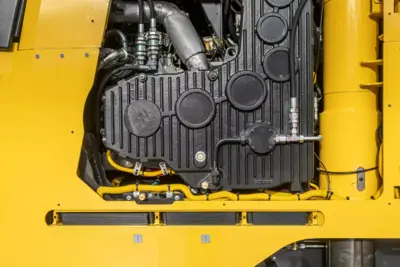

Liquid cooled engine following latest emission rules
Variable placeable working-lights
Rotary-beacon
Mirror
CE-conform safety-package with emergency-stop-switches
Back-up-alarm
Vandalism protection
