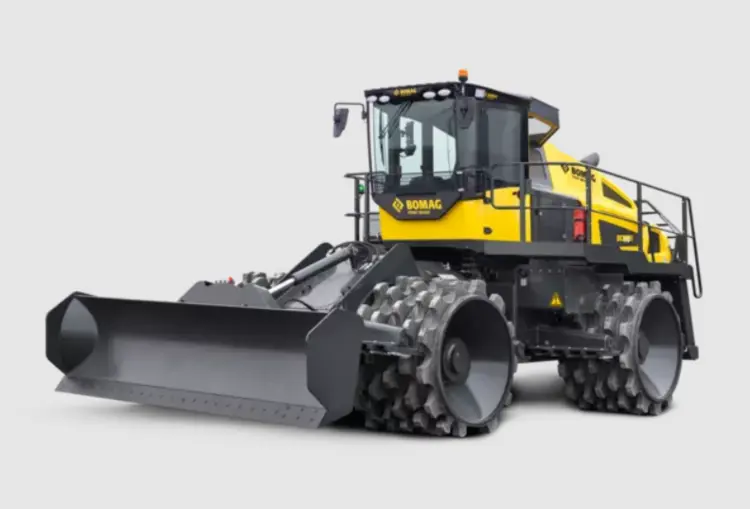

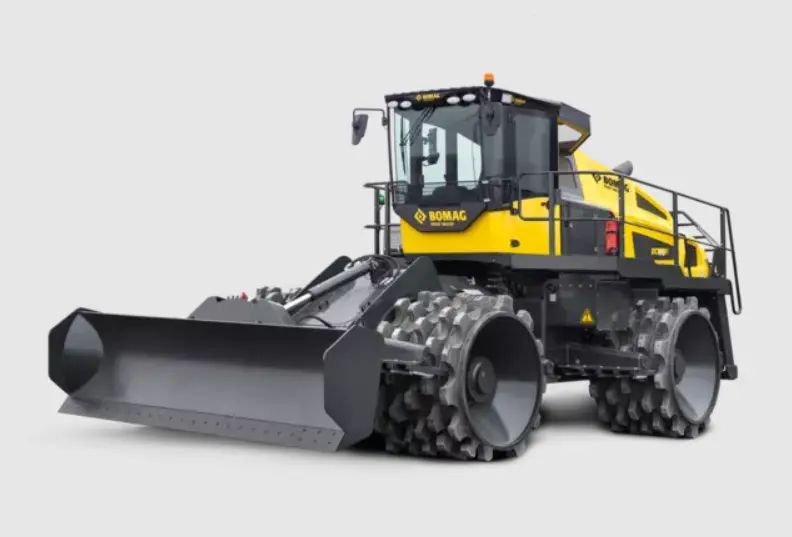

The BOMAG BC 773 EB-5 soil compactor enables the best possible use of landfill space.
It is also ideal for efficient and economical compaction on large construction sites. With a BOMAG BC 773 EB-5 soil compactor, you can make the most of the available landfill volume. Compared to a doozer, capacity increases of up to 10% are possible.
A soil compactor can significantly reduce the volume of air in the landfill body and achieve a much higher level of compaction. It pays to use a soil compactor: Every ton of additional material stored means hard cash for the operating company.
Compaction is generated statically (without vibration) by ground pressure and the tooth tips of the wheels. The length and shape of the teeth are decisive here. A BOMAG soil compactor achieves very high peak pressures.
In addition, there is a crushing effect. The material is homogenised, and layers are coarsely mixed. The offset between the front and rear wheels ensures rapid, full-surface compaction.
This increases the stability of the landfill. Delivery vehicles no longer sink in and have no traction problems on the firmer ground. A factor that ensures safer and more efficient processes at the landfill or in earthworks, particularly on large construction sites.
Fields of application
Whether on large construction sites or landfills - BOMAG soil compactors can be used on almost any material.
BOMAG soil compactors are ideal for spreading, mixing and compacting without vibration on large construction and landfill sites. The soil compactor's high degree of compaction greatly increases the stability of the subsoil or the landfill. Delivery vehicles no longer sink in and, like the soil compactor itself, have no traction problems.
When backfilling clay pits, for example, soil compactors can be used without any problems. With a choice of different compaction wheels and dozer blades, a BOMAG soil compactor can be adapted to the special requirements of the construction site.
Whether working in rain, on mixed or cohesive soils, and thin or medium layers: BOMAG's ingenious scraper system guarantees clean tools, constant compaction and maximum traction.
Standards
Electronic engine management
Electronic monitoring module with engine shut-down
Engine air intake at a height of 3,30 m
Dry air filter
Cold starting system
Multi fuel filter system
Fuel bleeding pump
Hydraulic all-wheel drive (Quad pump drive)
Wear control in hydraulic circuit
Hydraulically operated articulated steering system
Oscillating articulated joint between front and rear frames
Automatic central lubrication system (Bucket system, manual)
Adjustable scrapers in front of and behind each wheel
All drive components well protected by the closed frame pan
Wire deflector and drive protection on inner side of wheels
ROPS/FOPS
Noise insulated cab
Vibration insulated cab suspension
Cab ventilation with overpressure
Activated charcoal filter for odour restriction
Automatic heating - air conditioning
Tinted safety glass panes
Sun shades
Hinged window left
Windscreen wiper/washer, front
Interval switch for windscreen wipers
Outer rear-view mirror, electrically adjustable
Heated outside mirror
Heatable rear windscreens
Air suspended seat
Seat belt
Seat heating
Head rest
Control unit for bucket and travel direction control integrated in driver’s seat
Adjustable joystick steering
Control panel
CD-Radio
24 V electrics
Generator 150 A
Battery disconnecting switch
LED Working lights, 4 front/4 rear/2 lateral
Rotary beacon
Audible backup alarm
Warning horn
Access steps right / left
Towing eyes front / rear
Hydr. driven, reversible and speed controlled radiator fan
Rearview camera
