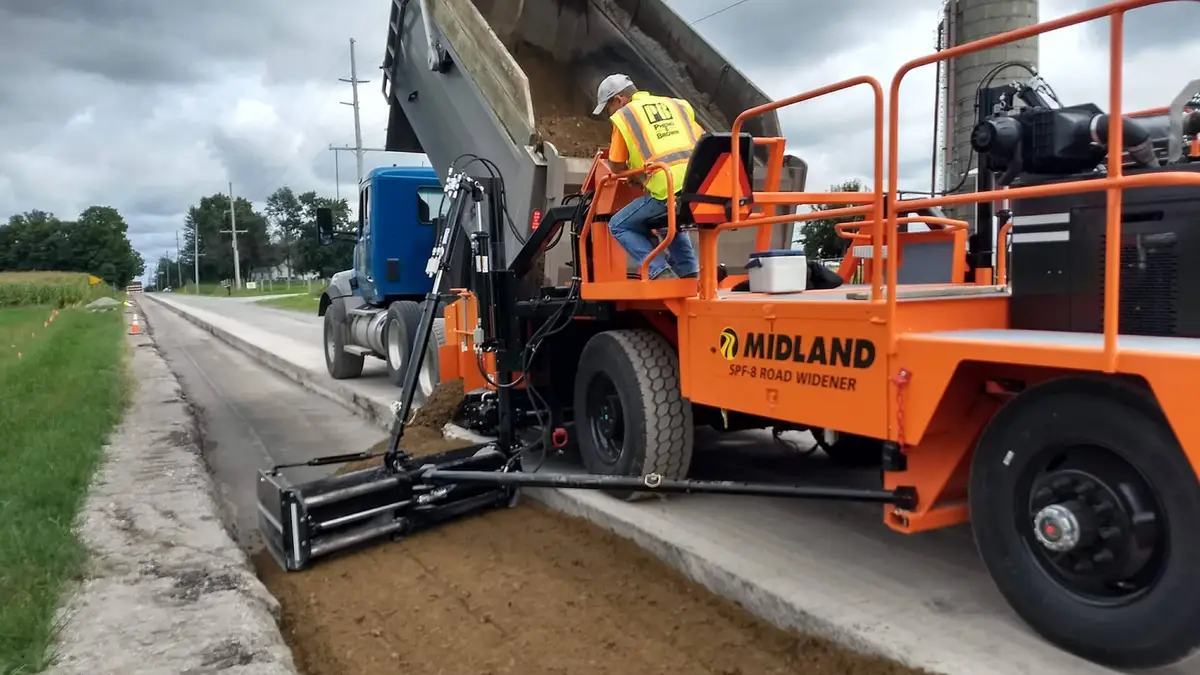

MIDLAND SPF-8 DOUBLE-SIDED SELF-PROPELLED ROAD WIDENER
Road Wideners
The newly designed and innovative Midland Model SPF-8 incorporates the folding features proven efficient in the versatile Model SPR-6. It also integrates the successful drive train and hydraulic components of the SPD-8 Model.
The SPF-8 conveniently folds to a travel width of just under 8 ft.-6 in., making it a legally transportable load without the need for over-dimension DOT permits. This allows for easy transportation day or night, even on weekends and holidays, providing added convenience to users.
Engine:
John Deere Model 4045 Tier 4/EU Stage V Hydrostatic Variable Speed Traction Drive - w/3 speed ranges
Travel Speed: 0to 9mph (13km/hr)
Working Speed 1: 0-140ft/min.(43m/min)
Working Speed 2: 0-250ft/min.(76m/min)
Front Wheel Drive & Steering
Foot Operated Service Brake
SAHR - Emergency/Parking Brake (Both F&R)
Tires: Front -425/65R22.5 Rear - 11R22.5
Strike off Blade:
StandardL andRHSpreaderBlades
Spread Width 1-8ft (2.44m)
Bolt-On Blade Sections,
- 1ft (30cm) &2ft (60cm) x 18in Tall
Hydraulic Grade Control:
12in (30.5cm) Above a n d Below Grade
Hydraulic Slope Control: +/-16%
LH and RH Blades Fold Back for Legal Width Transport
PushRollers:
Hydraulically Extendable 10in (25cm) Oscillating, Self-cleaning
Folding Hopper/Sliding Conveyor:
Individual Hopper Wing Lift Controls, Both L&R
Hopper capacity 3cu yd (2.3cu m)
Adjustable Discharge Gates, Both L. &R
Sliding Conveyor Moves 16in From Center Position for LH or RH Discharge
Positive Chain Drive, Heat and Oil Resistant Belt
Variable Speed Material Belt, 24in Wide, 3ply
Dual High Torque Hyd Motor Drive to 500tph
Dimensions:
Length:20ft8in(6.3m)
Transport width: 8ft 3in (2.5m)
Height: 8ft 6in (2.6m)
Weight: 20,000lbs (9080kg)
Wheel Base: 120in (305cm)
Turning Radius: 15ft (4.57m)
