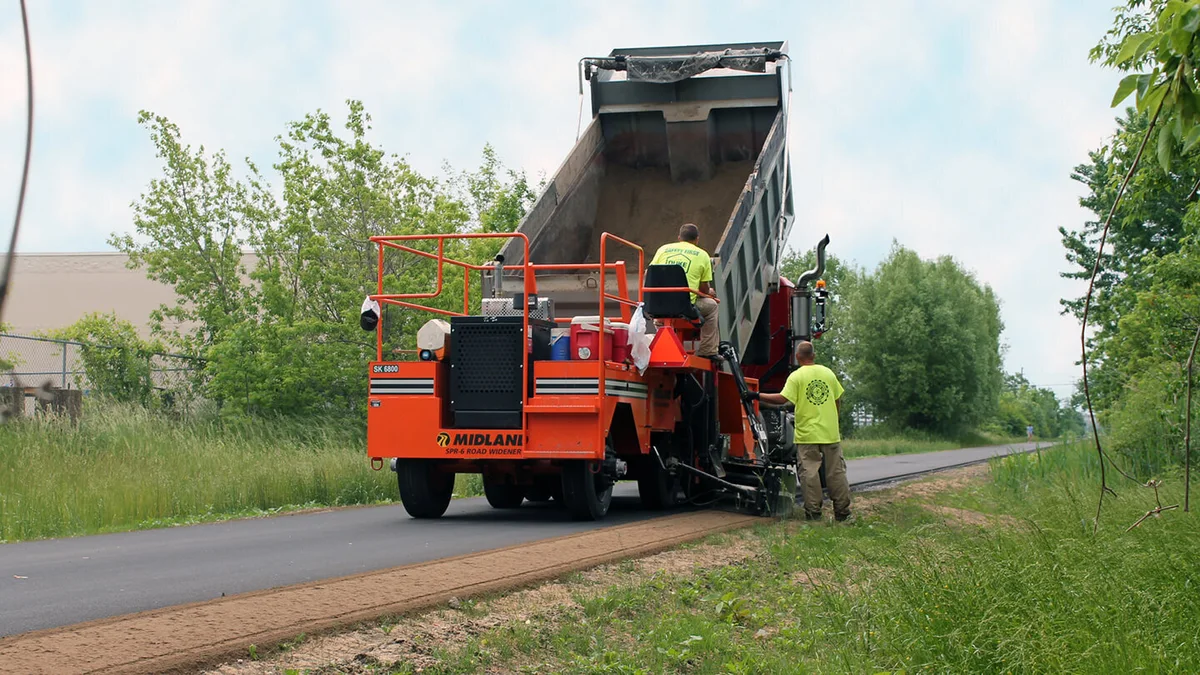

MIDLAND SPD-6 DOUBLE-SIDED SELF-PROPELLED ROAD WIDENER
Have one to sell?
ConditionNew
0 available
New
The SPD-6 ensures quick and effortless shoulder spreading jobs. With its front-wheel drive and steering, rapid RH/LH changeover, and STOW & GO Strike off Blades, this self-propelled widener streamlines operations for contractors and municipalities, delivering maximum production while saving time and labor.
The bi-directional, 18 in. wide chain drive conveyor adds to its efficiency. Despite its compact size, the SPD-6 handles large trucks with ease, making it a powerful and convenient choice for any road maintenance project.
Engine & Traction Drive:
• 65 HP (48.5 kw) Model QSF2.8 Full Tier IV Final Turbocharged Cummins Diesel Engine
• Dash- mounted digital engine monitor with key start and throttle
• Front Steering /Drive Axle
• Two speed Hydrostatic Transmission • Hydraulic Service Brake
• Emergency/Parking Brake
- Air Released/ Spring Actuated
• Travel Speed: 0 - 8 mph (18 km/hr.)
• Working Speed: 0 - 150 ft./min. (46 m/min.)
Receiving Hopper:
• 2.75 cubic yards (2.1 cu. m).
• 9 ft. 5 in. (2.89 m) inside width.
• Reinforced Rubber Bib - 3/4" thick (1.905 cm)
Full width
Conveyor:
• 18 in. (46 cm) wide, Heat and Oil Resistant, Conveyor Belt bolted to Drive Chains
• Variable Speed Hydraulic Drive to 300 tph
• Two variable speed, high torque hydraulic motors
mounted on RH and LH conveyor drive roller with sprockets • 28 - Sealed Support, Idler Rollers
Strike off Blades- RH and LH sides:
• RH side -1 to 6 ft. (1.82 m) spread width, 18 in. (0.46 m) high
• 1 ft. (30 cm) & 2 ft. (60 cm) modular Blade sections
o Optional Hydraulic Section 1 to 2 ft. (30 to 60 cm)
• LH side Blade & Column
o LH Side- 1 to 2 ft. (30 cm to 60 cm) spread width, 18 in. (46 cm) high
• Hydraulic Grade Control - 12 in. (30.5 cm) above and below Grade
• Hydraulic Slope control +/-16 %
Push Rollers:
Oscillating, Self cleaning and Hydraulically Extendible to 14 in. (35 cm)
