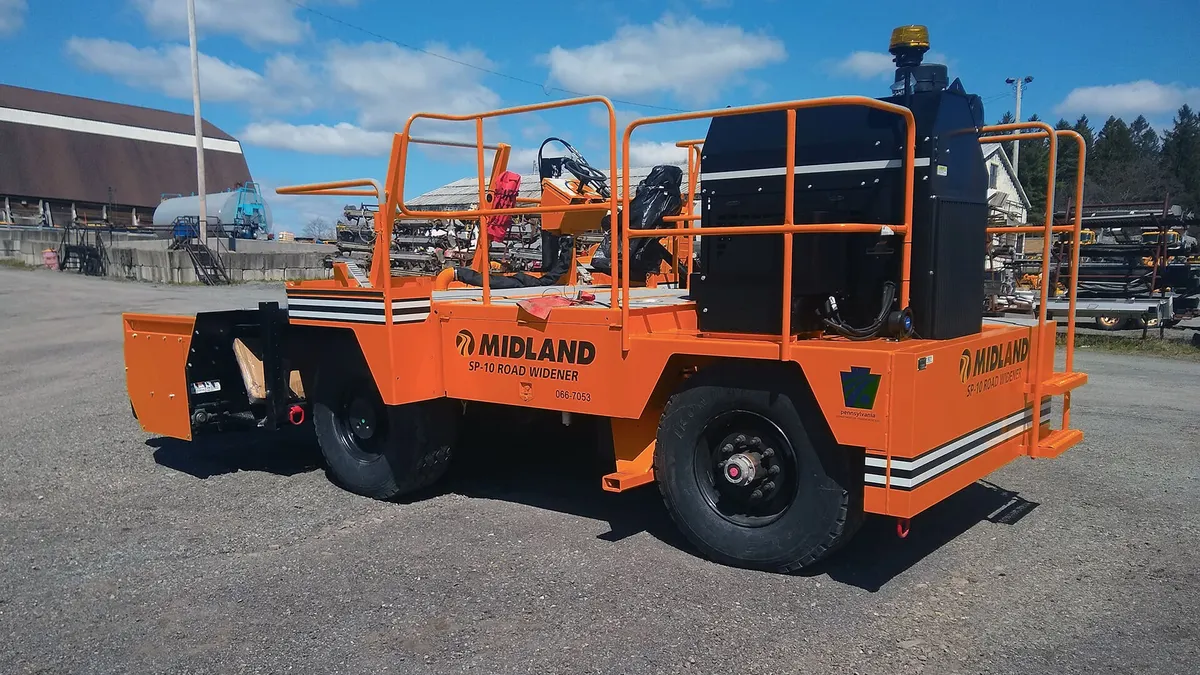

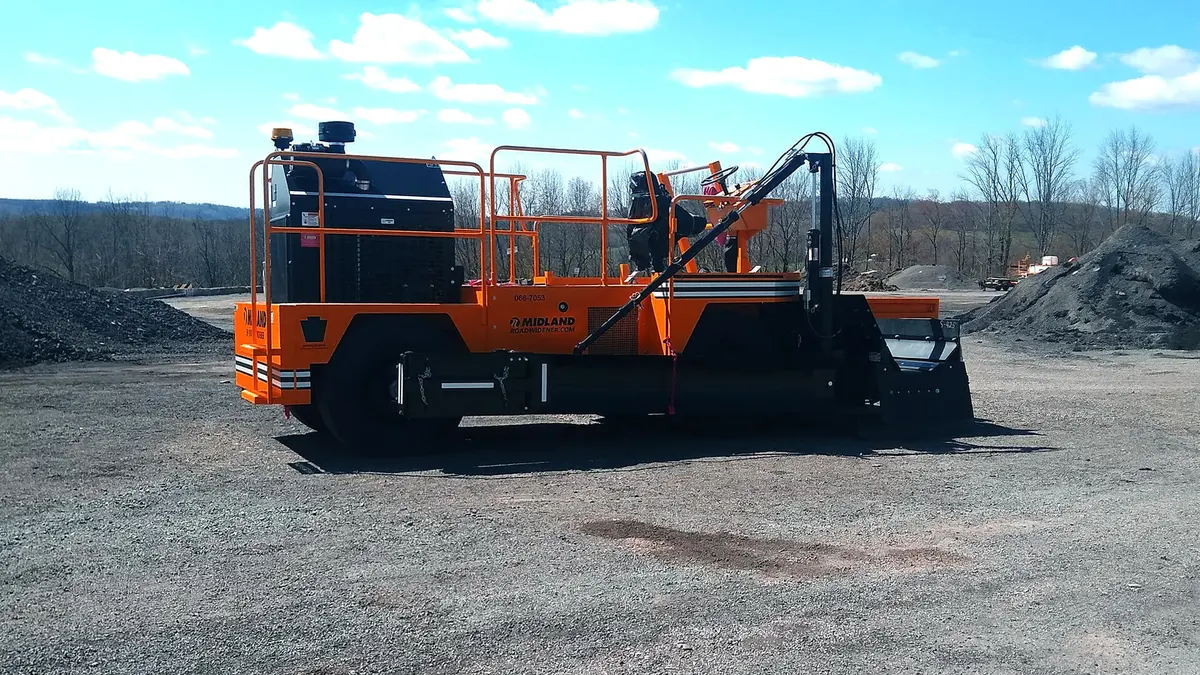

MIDLAND SPD-10 DOUBLE-SIDED SELF-PROPELLED ROAD WIDENER
ConditionNew
$307,700.00 USD
New
Spreads Left and Right up to 10 ft. beyond the mainline pavement. Spreads aggregate or hot asphalt mixes. The modular spreader blade can be added or removed to match any job.
The added ballast and horsepower give it the reach needed to do those shoulder jobs too big for smaller lower horsepower machines. Equipped with an 18 in. wide chain-driven conveyor, the SPD-10 can place 450 plus tons per hour.
Dimensions:
Length: 20ft. 6 in. (6.25 m)
Transport Width: 11 ft. 11in. (3.65 m)
Height: 8 ft. 3 in. (2.5 m)
Weight: 25,000 lbs. (11,363 kgs)
Wheel Base: 110" (279 cm)
Turning Radus: 15 ft. (4.57 m)
Engine:
Model 4045T John Deere Diesel
Turbocharged 100 HP (74.5 KW)
Hydrostatic Traction Drive
Two speed Transmission:
- Travel Speed: 0 – 11 mph (18 km/hr.)
- Working Speed: 0 – 150 ft/min.(46 m/min.)
Front Wheel Steering /Drive,
SAHR - Emergency/Parking Brake
(4)425/65R22.5 Wheels
Conveyor:
Left or Right hand Discharge
Variable Speed Hydraulic Drive to 450 tph
With two high torque Hydraulic motors.
Positive Chain drive, 18 in. (46 cm) wide,
Heat and oil resistant Material Belt.
Strike off Blade:
Standard left and right hand blades,
1 to 10 ft. (3.05 m) Spread width, Modular sections,
18 in. (46 cm ) tall, 1 ft. (30 cm) & 2 ft. (60 cm)
Optional Hydraulic Extension 2 to 4 ft.(1.22 m)
Hydraulic Grade Control: +/- 12 in. (30.5 cm)
above and below Grade
Hydraulic Slope control +/- 16 %
Push Rollers:
Extendable 14 in. (38 cm)
Oscillating, Self cleaning, Optional Hyd. Control
Washdown System
24" Hydraulic Variable Strike-Off Blade
Hydraulic Push Roller
