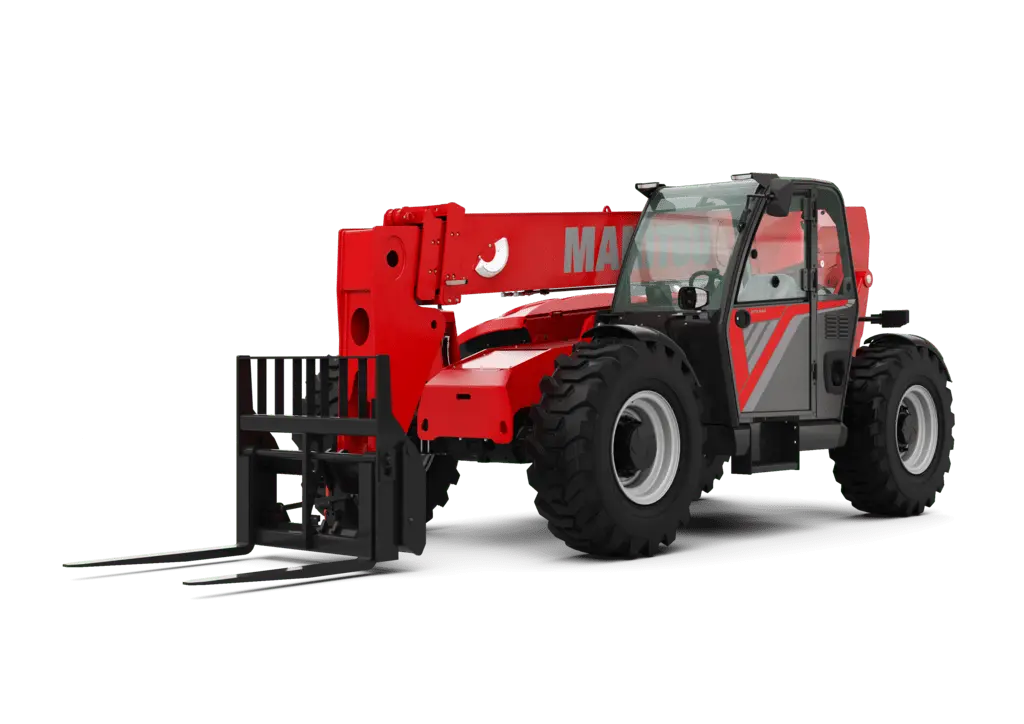

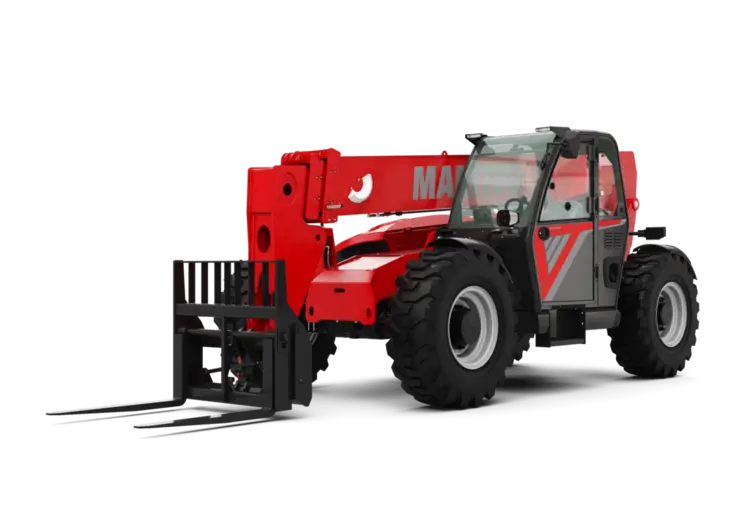

New - Build-To-Order MANITOU MTA 642 | Telehandler
Have one to sell?
ConditionNew
0 available
New
The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.
The MTA 642 offering a maximum lift 42' 6" (12.96 m) and reach 28' 6" (8.68 m) for a 6,000 lbs. (2,722 kg) telescopic handler. Features no DEF or DPF systems with a 74 HP Deutz engine.
The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.
New cabin design for more comfort and visibility
Enhanced performance from combined hydraulic movements
Better TCO with robust, high quality components
Capacities
Max. capacity 6000 lb
Max. lifting height 42 ft 6 in
Max. outreach 28 ft 6 in
Weight and dimensions
Length to face of forks 20 ft 8 in
Overall length (with forks) 24 ft 8 in
Overall width 8 ft 2 in
Overall height 8 ft
Wheelbase 11 ft 6 in
Ground clearance 1 ft 6 in
Overall cab width 3 ft 1 in
Tilt-up angle 34 °
Tilt-down angle 96 °
External turning radius 13 ft 1 in
Unladen weight (with forks) 22851 lb
Overall weight 22851 lb
Tires type Pneumatic
Forks length / width / section 48 in x 4 in x 2 in
Frame leveling corrector 10 °
Performances
Lifting 11 s
Lowering 6 s
Extension 17 s
Retraction 11 s
Crowd 4 s
Dump 6 s
Engine
Engine brand Deutz
Engine norm Tier 4 final
Engine model TCD 3.6 L4
Number of cylinders / Capacity of cylinders 4 - 220 in³
I.C. Engine power rating - Power 74 Hp / 55 kW
Max. torque / Engine rotation 288 ft/lbs @ 2300 rpm
Drawbar pull 10433 kgF
Transmission
Transmission type Powershift
Number of gears (forward / reverse) 5 / 3
Max. travel speed 20 mph
Parking brake Hydraulic spring release SAHR
Service brake Wet disc brakes
Hydraulics
Hydraulic pump type Axial piston
Hydraulic flow / Pressure 40 US gpm-4000 PSI
Tank capacities
Engine oil 2 US gal
Hydraulic oil 36 US gal
Fuel tank 38 US gal
Noise and vibration
Noise at driving position (LpA) 80 dB
Miscellaneous
Steering wheels (front / rear) 2 / 2
Drive wheels (front / rear) 2 / 2
