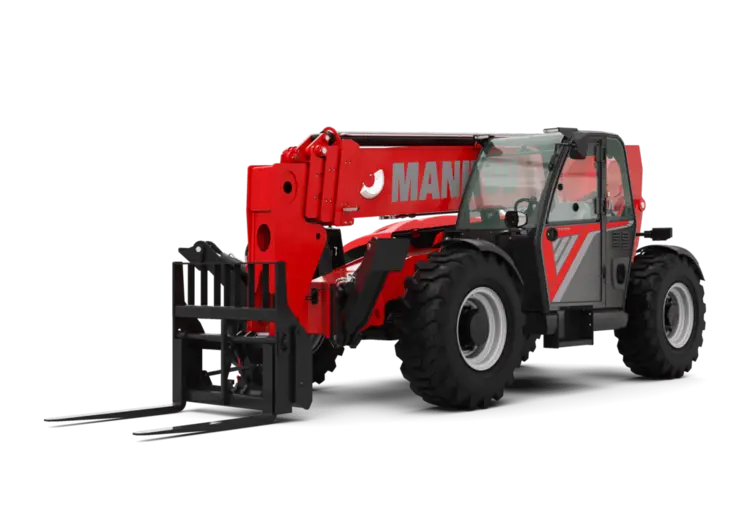

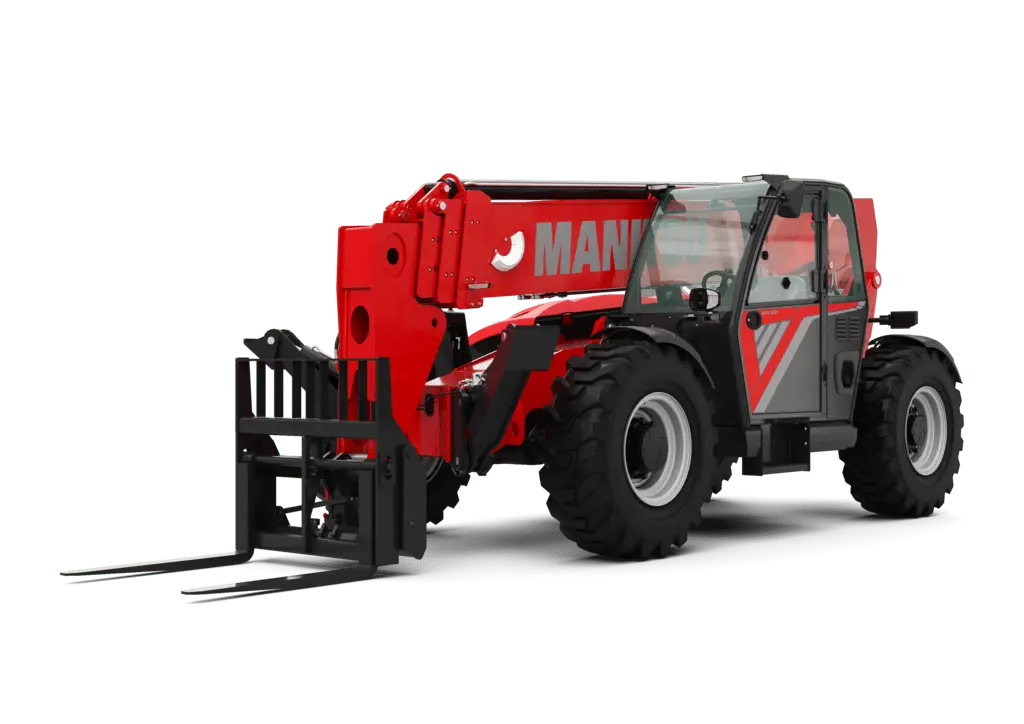

New MANITOU MTA 1055 | Telehandler
Have one to sell?
ConditionNew
New
The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.
The MTA 1055: high lift with full power performance. MTA 1055 has 10,000 lbs. (4,536 kg) capacity with max lift to 55' 7" (16.9 m) and reach to 42' 3" (12.9 m). Deutz 127 HP and 5 speed power shift trasmission.
The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.
New cabin design for more comfort and visibility
Enhanced performance from combined hydraulic movements
Better TCO with robust, high quality components
Capacities
Max. capacity 10000 lb
Max. lifting height 55 ft 7 in
Max. outreach 42 ft 3 in
Weight and dimensions
Length to face of forks 21 ft
Overall length (with forks) 25 ft
Overall width 8 ft 4 in
Overall height 8 ft 6 in
Wheelbase 11 ft 6 in
Ground clearance 1 ft 7 in
Overall cab width 3 ft 1 in
Tilt-up angle 34 °
Tilt-down angle 96 °
External turning radius 12 ft 10 in
Overall weight 30300 lb
Tires type Pneumatic
Forks length / width / section 48 in x 5 in x 2 in
Frame leveling corrector 10 °
Performances
Lifting 16 s
Lowering 11 s
Extension 18 s
Retraction 16 s
Crowd 4 s
Dump 6 s
Engine
Engine brand Deutz
Engine norm Tier 4 final
Engine model TCD 3.6 L4
Number of cylinders / Capacity of cylinders 4 - 220 in³
I.C. Engine power rating - Power 127 Hp / 95 kW
Max. torque / Engine rotation 369 ft/lbs @ 2300 rpm
Drawbar pull 12519 daN
Transmission
Transmission type Powershift
Number of gears (forward / reverse) 5 / 3
Max. travel speed 20 mph
Parking brake Hydraulic spring release SAHR
Service brake Wet disc brakes
Hydraulics
Hydraulic pump type Axial piston
Hydraulic flow / Pressure 40 US gpm-4000 PSI
Tank capacities
Engine oil 2 US gal
Hydraulic oil 42 US gal
Fuel tank 38 US gal
DEF tank capacity 4 US ga
Noise and vibration
Noise at driving position (LpA) 80 dB
Miscellaneous
Steering wheels (front / rear) 2 / 2
Drive wheels (front / rear) 2 / 2
Controls Joystick
