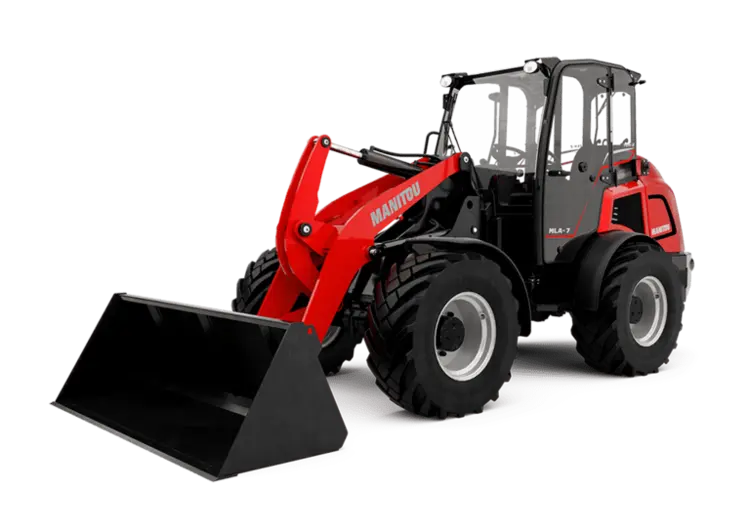

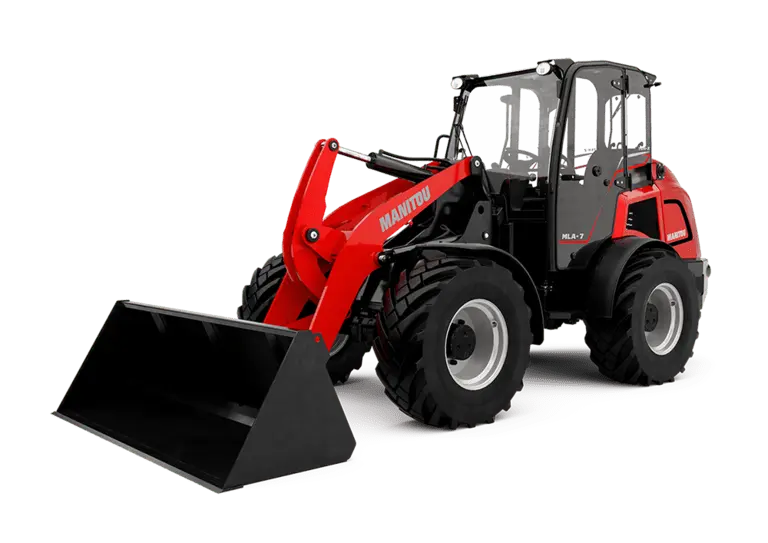

New - Build-To-Order MANITOU MLA 7-75 H-Z | Compact Wheel Loader
Have one to sell?
ConditionNew
New
The Manitou MLA 7-75 is the largest wheel loader in the range with a standard lift arm. Similar to the smaller units, this machine did not make compromises in terms of comfort and performance! The hydrostatic transmission is smooth at low speed and very powerful in demanding circumstances. With gearshift and 100% diff lock controls on the joystick, the operator is always in control. With optional 30 kph and lift arm suspension, the MLA 7-75 will bring you in full comfort from one jobsite to another. The Z-bar loader linkage gives you the extra break-out force, return to dig and parallel guidance. Whether in agricultural or in construction environment, this wheel loader performs at its best in tough conditions and never lets you down.
See less
Capacities
Static tipping load with bucket (straight) 7447 lb
Static tipping load with bucket (full turn) 5778 lb
Static tipping load with forks (straight) 6043 lb
Static tipping load with forks (full turn) 4793 lb
Max. height of bucket pivot point 11 ft 5 in
Max. lifting height (below forks) 10 ft 9 in
Breakout force with bucket 5906 daN
Weight and dimensions
Unladen weight (with forks) with 4-post canopy 10540 lb
Unladen weight (with forks) 10919 lb
Wheelbase 6 ft 9 in
Overall width of 4 posts canopy 4 ft 2 in
Overall cab width 4 ft 2 in
Overall height with FOPS removed and ROPS folded 6 ft 6 in
Overall height with 4 posts canopy 8 ft 2 in
Overall height with cab 8 ft 2 in
Tilt-up angle 45 °
Tilt-down angle 45 °
Articulation angle 45 °
Overall width less bucket 5 ft 9 in
Overall length - Less Bucket 14 ft 7 in
Ground clearance 1 ft
Engine
Engine brand Deutz
Engine model TD_3_6_L4
Engine norm Stage IIIB, Stage V, Tier 4
Number of cylinders / Capacity of cylinders 4 - 220 in³
I.C. Engine power rating / Power 74.30 Hp / 55.40 kW
Max. torque / Engine rotation 243 ft/lbs / 1600 rpm
Engine cooling system 2 radiators water + hydraulic oil
Transmission
Transmission type Hydrostatic
Number of gears (forward / reverse). 2 / 2
Max. travel speed (may vary according to applicable regulations) 19 mph
Travel speed (laden) 12 mph
Differential lock Front and rear locking of the machine
Parking brake Manual
Hydraulics
Hydraulic pump type Gear pump
Hydraulic flow - Pressure 18 US gpm / 2901 PSI
High-Flow Option (l/min) 29 US gpm
Drive hydraulic system pressure 5511 PSI
Tank capacities
Hydraulic oil 20 US gal
Fuel tank 27 US gal
Noise and vibration
Vibration on hands/arms < 2.50 m/s²
Miscellaneous
Safety cab homologation ROPS - FOPS cab (level 1)
