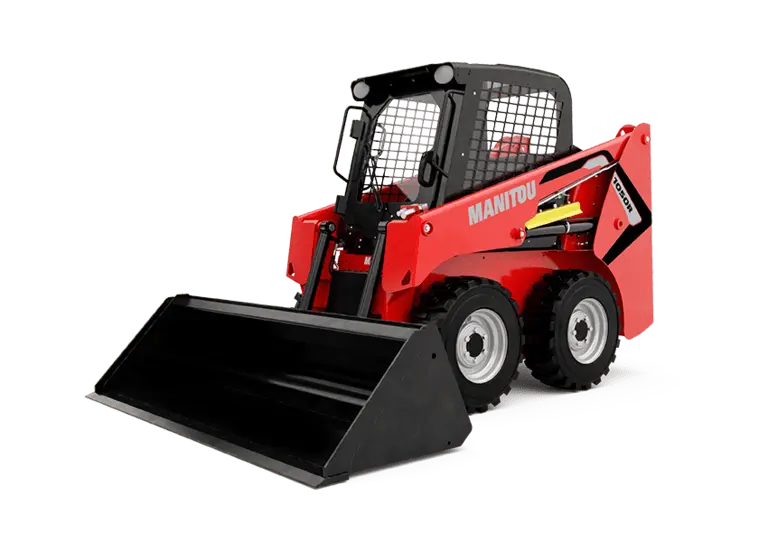

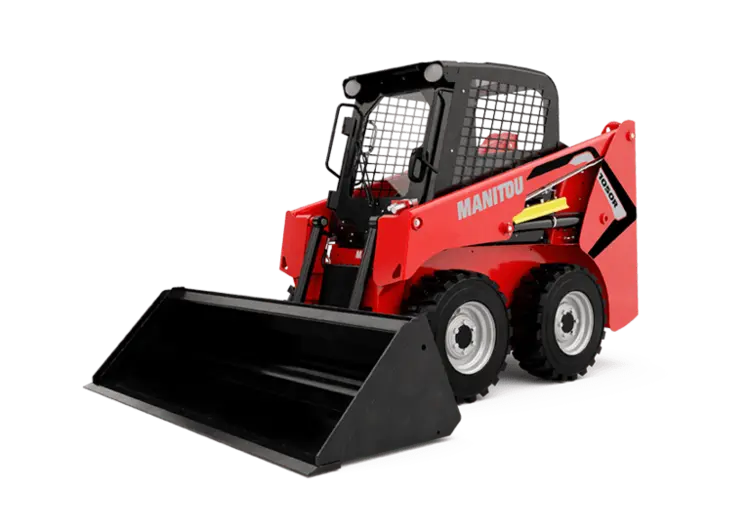

Carry out your leveling, loading and grading tasks with ultra-compact 1050 R skid loader. The compactness of this Manitou loader and the ergonomic driving position allows you to operate easily, even in the most confined, difficult to access spaces. Enjoy the versatility of the ultra-compact 1050 R skid loader to perform your various operations in - transporting, loading, unloading, height positioning and change out attachments within minutes to complete multple projects at a time.
Capacities
Rated Operating Capacity 1049 lb
Rated Operating Capacity with Optional Counterweight 1175 lb
Unladen weight 4200 lb
Weight and dimensions
Overall Operating Height - Fully Raised 140 in
Height to Hinge Pin – Fully Raised 108 in
Overall Height to top of ROPS 70 in
Dump angle at full height 42 °
Dump height 84 in
Overall length with bucket 114 in
Dump reach - Full height 23 in
Rollback at ground 29 °
Seat to ground height 33 in
Wheelbase 34 in
Overall width less bucket 48 in
Bucket Width 55 in
Ground clearance. 6 in
Overall length - Less Bucket 89 in
Departure angle 26 °
Clearance Radius - Front with Bucket 69 in
Clearance Circle - Front without Bucket 44 in
Clearance Circle - Rear 54 in
Performances
Travel speed (unladen) 6 mph
Wheels
Standard tires 27 x 8.5 x 15 HD
Engine
Engine brand Yanmar
Engine model 3TNV88C-KMSV
Engine norm Stage V, Tier 4
Gross Power 25.50 kW
Net Power 24.70 kW
Max. torque / Engine rotation 80 ft/lbs / 2800 rpm
Power source Diesel
I.C. Engine power rating 34.20 Hp
Battery voltage 12 V
Alternator 40 kW
Starter 2.30 kW
Hydraulics
Standard flow - Auxiliary hydraulics 15 US gpm
Auxiliary Hydraulic Pressure 2750 PSI
Tank capacities
Fuel tank 10 US gal
Hydraulic oil tank capacity 8 US gal
Displacement 0.42 US gal
Noise and vibration
Noise to environment (LwA) 101 dB
Noise at driving position (LpA) 80 dB
Whole-Body Vibration (ISO 2631-1) 0.81 m/s²
Vibration on hands/arms < 0.93 m/s²
