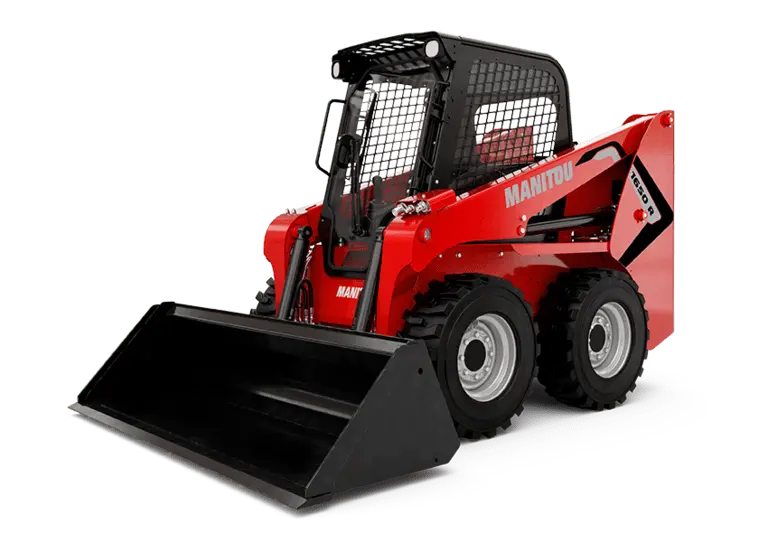

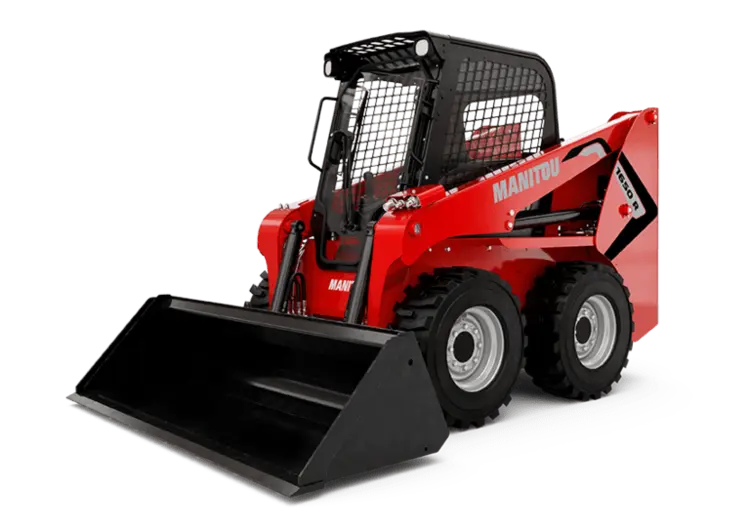

New MANITOU 1650R | Skid Steers

Capacities
Rated Operating Capacity 1649 lb
Rated Operating Capacity with Optional Counterweight 1800 lb
Unladen weight 6164 lb

Weight and dimensions
Overall Operating Height - Fully Raised 153 in
Height to Hinge Pin – Fully Raised 119 in
Overall Height to top of ROPS 77 in
Dump angle at full height 38 °
Dump height 94 in
Overall length with bucket 122 in
Dump reach - Full height 23 in
Rollback at ground 28 °
Seat to ground height 36 in
Wheelbase 39 in
Overall width less bucket 61 in
Bucket Width 61 in
Ground clearance 6 in
Overall length - Less Bucket 94 in
Departure angle 21 °
Clearance Radius - Front with Bucket 74 in
Clearance Circle - Front without Bucket 45 in
Clearance Circle - Rear 58 in

Performances
Travel Speed with Two-Speed Option - Maximum 12 mph
Travel speed (unladen) 8 mph

Wheels
Standard tires 10.00 x 16.5 HD

Engine
Engine brand Yanmar
Engine model 4TNV88C-KMS
Gross Power 52 kW
Net Power 51 kW
Max. torque / Engine rotation 178 ft/lbs / 2500 rpm
Power source Diesel
I.C. Engine power rating 69.73 Hp
Battery voltage 12 V
Alternator 100 kW
Starter 3 kW

Hydraulics
Standard flow - Auxiliary hydraulics 19 US gpm
Auxiliary Hydraulic Pressure 3002 PSI
High-Flow Auxiliary Hydraulics – Option 30 US gpm
High-Flow Auxiliary Hydraulics Pressure – Option 2901 PSI

Tank capacities
Fuel tank 17 US gal
Hydraulic oil tank capacity 11 US gal
Displacement 0.87 US gal

Noise and vibration
Noise to environment (LwA) 101 dB
Noise at driving position (LpA) 85 dB
Whole-Body Vibration (ISO 2631-1) 0.90 m/s²
Vibration on hands/arms < 1.77 m/s²
