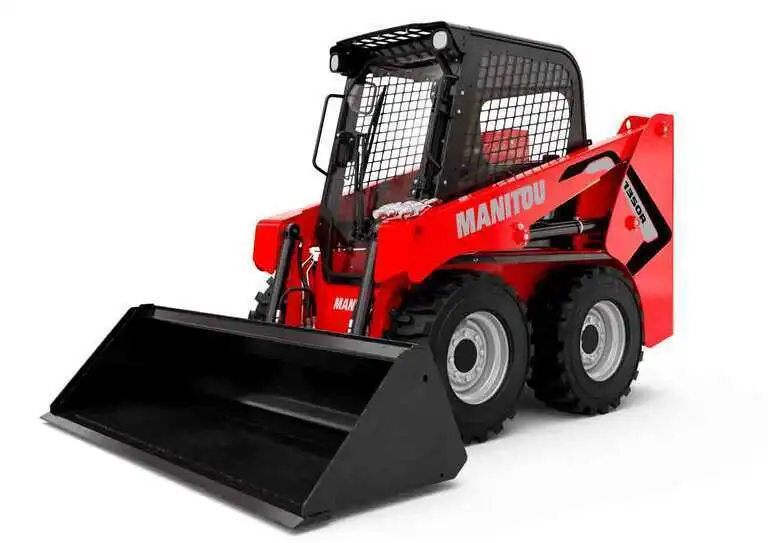

New - Build-To-Order MANITOU 1350R NXT2 | Skid Steers

Capacities
Rated Operating Capacity 1349 lb
Rated Operating Capacity with Optional Counterweight 1499 lb
Unladen weight 5256 lb

Weight and dimensions
Overall Operating Height - Fully Raised 144 in
Height to Hinge Pin – Fully Raised 110 in
Overall Height to top of ROPS 76 in
Dump angle at full height 40 °
Dump height 84 in
Overall length with bucket 121 in
Dump reach - Full height 23 in
Rollback at ground 28 °
Seat to ground height 34 in
Wheelbase 37 in
Overall width less bucket 54 in
Bucket Width 54 in
Ground clearance 8 in
Overall length - Less Bucket 93 in
Departure angle 25 °
Clearance Radius - Front with Bucket 73 in
Clearance Circle - Front without Bucket 44 in
Clearance Circle - Rear 54 in

Performances
Travel speed (unladen) 8 mph

Wheels
Standard tires 10 x 16.5 - 10 PR HD

Engine
Engine brand Yanmar
Engine model 4TNV88C-KMS
Engine norm Stage V, Tier 4
Gross Power 34.30 kW
Max. torque / Engine rotation 108 ft/lbs / 2800 rpm
Power source Diesel
I.C. Engine power rating 46 Hp
Battery voltage 12 V
Alternator 100 kW
Starter 2.30 kW

Hydraulics
Standard flow - Auxiliary hydraulics 17 US gpm
Auxiliary Hydraulic Pressure 3002 PSI

Tank capacities
Fuel tank. 16 US gal
Hydraulic oil tank capacity 9 US gal
Displacement 0.58 US gal
Coolant system capacity 2 US gal

Noise and vibration
Noise to environment (LwA) 82 dB
Noise at driving position (LpA) 100 dB
Whole-Body Vibration (ISO 2631-1) 0.81 m/s²
Vibration on hands/arms < 1.90 m/s²
