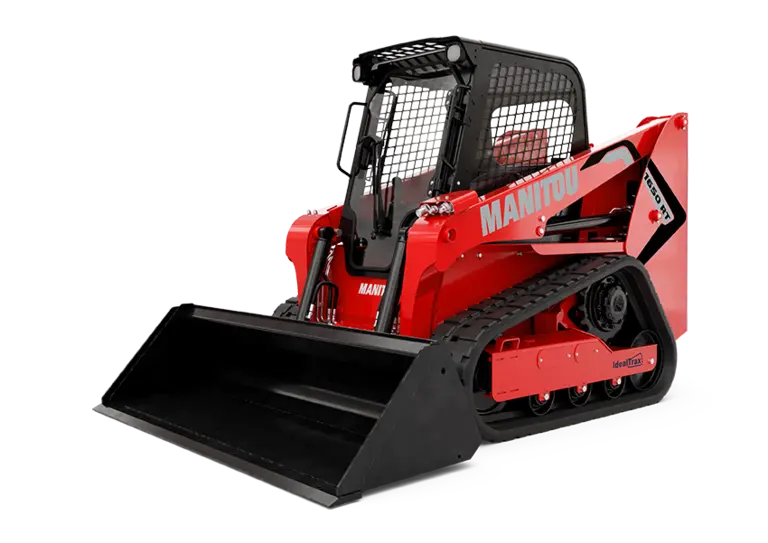

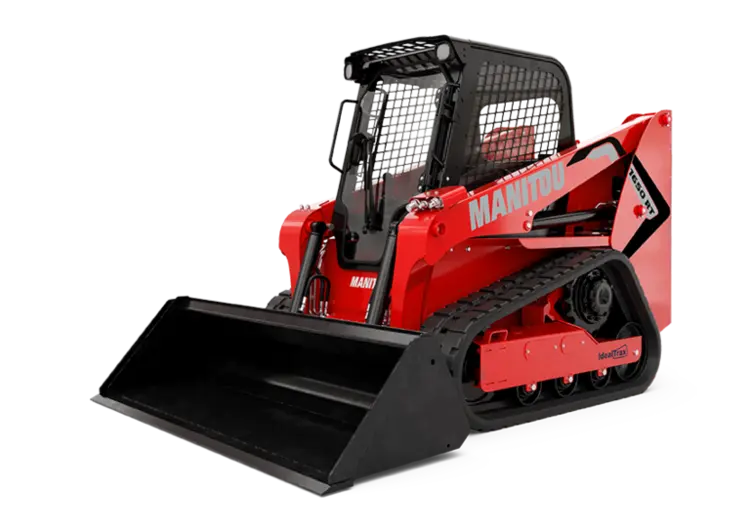

New MANITOU 1650RT | Compact Track Loaders

Capacities
Operating Weight 8020 lb
Unladen weight 8020 lb
Operating Capacity at 35% Tipping Load 1649 lb
Operating Capacity At 50% Tipping Load 2357 lb
Tipping capacity 4716 lb

Weight and dimensions
Overall Operating Height - Fully Raised 158 in
Height to Hinge Pin – Fully Raised 120 in
Dump reach - Full height 25 in
Dump angle at full height 39 °
Dump Height - Fully Raised 92 in
Maximum Rollback Angle - Fully Raised 98 °
Overall Height to top of ROPS 78 in
Overall length with bucket 126 in
Overall Length without Bucket 94 in
Specified Height 64 in
Reach at Specified Height 22 in
Dump angle at specified height 73 °
Maximum Rollback Angle at Ground 28 °
Carry Position 8 in
Maximum Rollback Angle at Carry Position 28 °
Digging Position 2 in
Angle of Departure with STD Counterweight 28 °
Ground clearance 7 in
Track gauge 53 in
Track Shoe Width 13 in
Crawler base 50 in
Overall width less bucket 66 in
Bucket Width 66 in
Clearance Radius - Front with Bucket 78 in
Clearance Circle - Rear 57 in
Maximum rollback at specified height 62 °
Angle of Approach 90 °
Grouser Height 0.98 in
Track Type / Track Rollers / Roller Type Rubber / 3 / Steel

Performances
Ground Speed - Single Speed 7 mph
Ground Speed - Two Speed 10 mph
Drawbar Pull/Tractive Effort 9579 lb
Bucket Breakout - Tilt Cylinder 4231 lb
Bucket Breakout - Lift Cylinder 5060 lb

Engine
Engine brand Yanmar
Engine model 4TNV98C-NMS2
Motor Type Radial Piston
Gross Power / Power 51.70 kW @ 2500 rpm
Net Power / Power 51 kW / 2500 rpm
Max. torque 178 ft/lbs
I.C. Engine power rating 69.30 Hp
Battery voltage 12 V
Cold Cranking Amps at Temperature (CCA) 950 A
Alternator - Voltage / Ampere 12 V / 100 A

Hydraulics
Standard flow - Auxiliary hydraulics 19 US gpm

Tank capacities
Oil Pan Capacity 2 US gal
Hydraulic oil tank capacity 10 US gal
Fuel tank 17 US gal
Coolant system capacity 3 US gal
Displacement / Number of cylinders 0.87 US gal / 4

Miscellaneous
Ground Pressure 7 PSI
