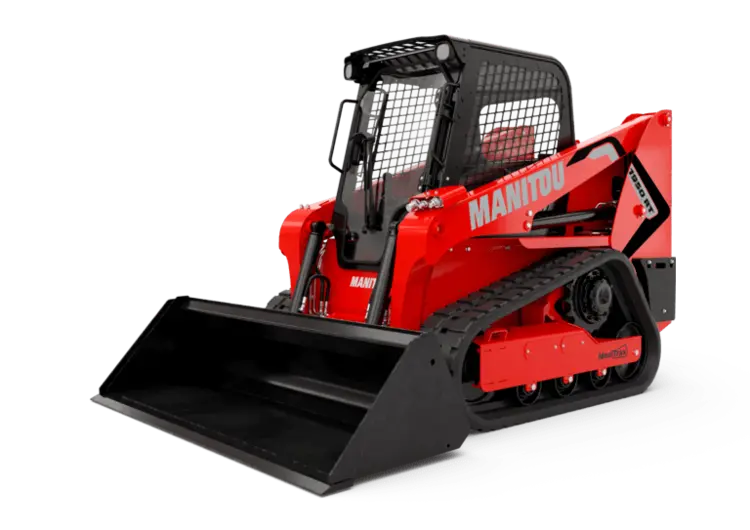

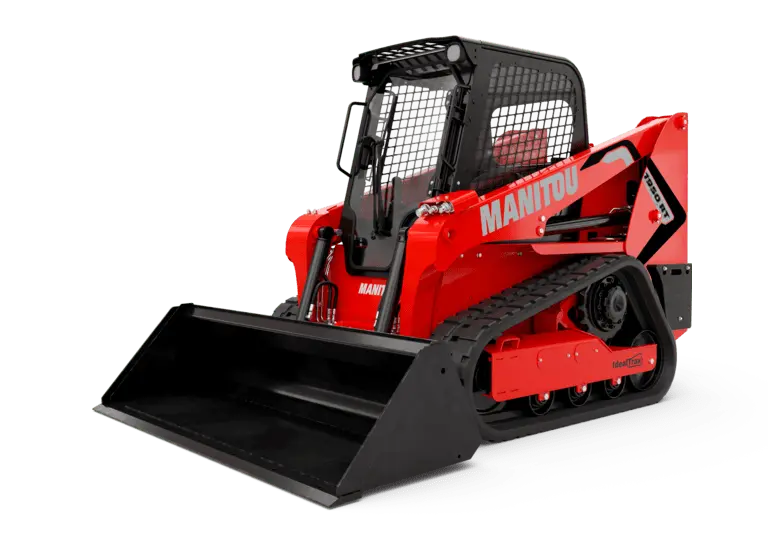

New MANITOU 1950RT | Compact Track Loaders

Capacities
Rated Operating Capacity 1951 lb
Rated Operating Capacity with Optional Counterweight 5858 lb
Operating Weight 8150 lb
Unladen weight 7544 lb
Operating Capacity At 50% Tipping Load 2787 lb
Tipping capacity 5571 lb

Weight and dimensions
Overall Operating Height - Fully Raised 158 in
Height to Hinge Pin – Fully Raised 120 in
Dump reach - Full height 26 in
Dump angle at full height 39 °
Overall Height to top of ROPS 78 in
Overall length with bucket 129 in
Departure angle 27 °
Ground clearance 7 in
Overall width less bucket 69 in
Bucket Width 70 in
Clearance Radius - Front with Bucket 81 in
Clearance Circle - Rear 59 in

Engine
Engine brand Yanmar
Engine model 4TNV98C-NMS2V
Gross Power 51.70 kW
Net Power 51 kW
Max. torque / Engine rotation 178 ft/lbs @ 2500 rpm
I.C. Engine power rating - Power 68.40 Hp / 51 kW
Battery voltage 12 V
Accessory plug 120 V
Alternator - Ampere 100 A

Transmission
Transmission type Hydrostatic

Hydraulics
Standard flow - Auxiliary hydraulics 19 US gpm
Auxiliary Hydraulic Pressure 5511 PSI
High-Flow Auxiliary Hydraulics – Option 30 US gpm
High-Flow Auxiliary Hydraulics Pressure – Option 6092 PSI

Tank capacities
Hydraulic oil tank capacity 10 US gal
Fuel tank 16 US gal
Coolant system capacity 3 US gal
Displacement / Number of cylinders 0.87 US gal / 4

Noise and vibration
Noise to environment (LwA) 101.40 dB
Noise at driving position (LpA) 82 dB
Whole-Body Vibration (ISO 2631-1) 1.10 m/s²
