New - Build-To-Order MANITOU 2100VT | Compact Track Loaders
Have one to sell?
ConditionNew
New

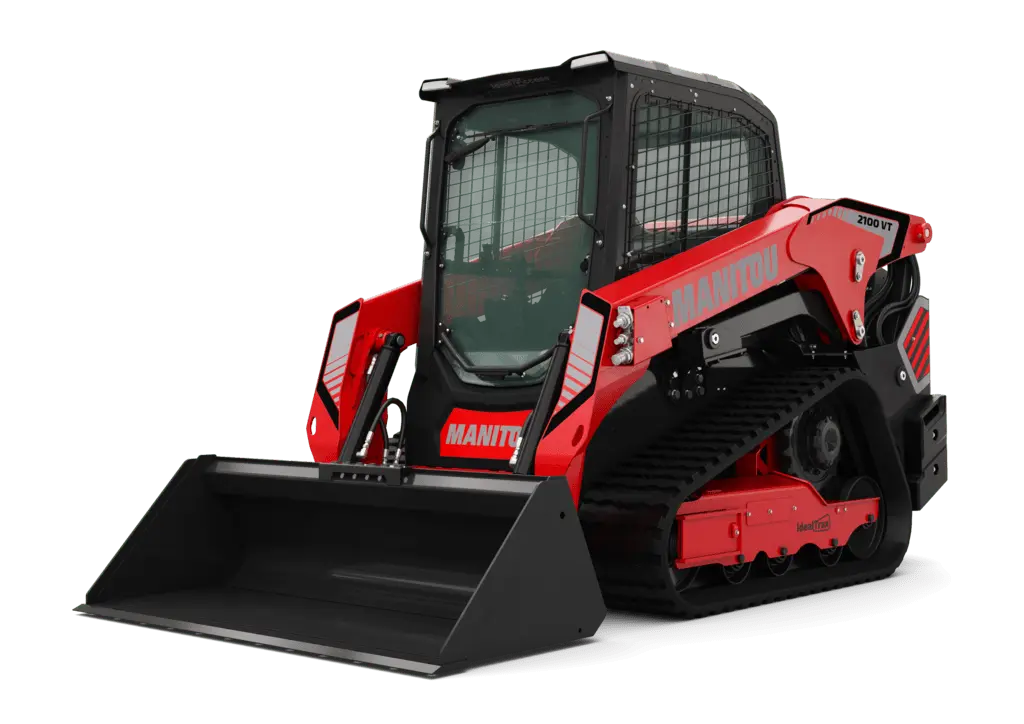

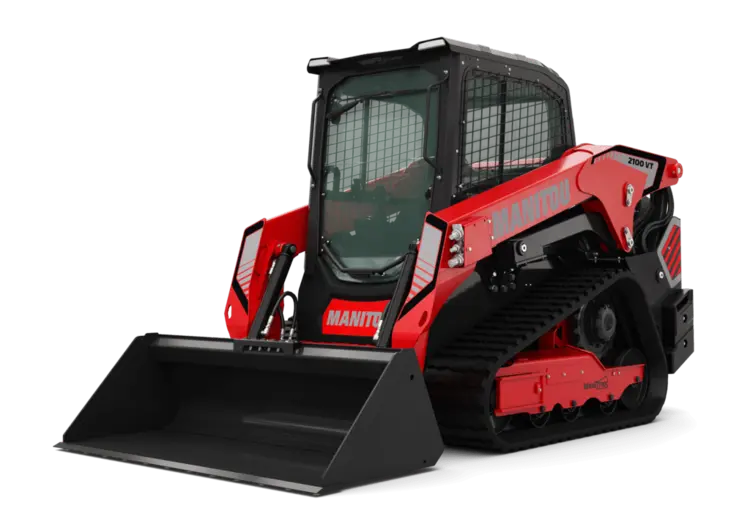

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.
The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.
The 2100VT track loader is designed and tested for performance to deliver productivity. With 3,000 lbs (1 361 kg) of operating capacity, 69 horsepower and up to 9.5 mph (15,3 km/h) the 2100VT is perfect for construction and ag applications.
Capacities
Rated Operating Capacity 2100 lb
Operating Capacity At 50% Tipping Load 3000 lb
Rated Operating Capacity with Optional Counterweight 2200 lb
Operating Weight 8865 lb
Unladen weight 8049 lb
Tipping capacity 5999 lb
Weight and dimensions
Operating Weight - Approximate 8865 lb
Overall Operating Height - Fully Raised 159 in
Height to Hinge Pin – Fully Raised 121 in
Overall Height to top of ROPS 81 in
Dump angle at full height 42 °
Dump height 91 in
Overall length with bucket 139 in
Dump reach - Full height 36 in
Rollback Angle at Full Height 92 °
Seat to ground height 38 in
Overall width less bucket 66 in
Ground clearance 8 in
Overall length - Less Bucket 108 in
Clearance Radius - Front with Bucket 87 in
Clearance Circle - Rear 63 in
Performances
Travel Speed with Two-Speed Option - Maximum 10 mph
Travel speed (unladen) 6 mph
Wheels
Transmission type Hydrostatic
Engine
Engine brand Yanmar
Engine model 4TNV98C-NGL
Engine norm Stage V, Tier 4
Gross Power 51.70 kW
Net Power 51 kW
Max. torque / Engine rotation 178 ft/lbs / 1625 rpm
Power source Diesel
Number of cylinders 4
I.C. Engine power rating 69.30 Hp
Engine cooling system Water
Battery voltage 12 V
Alternator - Ampere 100 A
Starter 3 kW
Hydraulics
Standard flow - Auxiliary hydraulics 23 US gpm
Auxiliary Hydraulic Pressure 3475 PSI
High-Flow Auxiliary Hydraulics – Option 30 US gpm
High-Flow Auxiliary Hydraulics Pressure – Option 3325 PSI
Tank capacities
Fuel tank 38 US gal
Displacement 0.87 US gal
