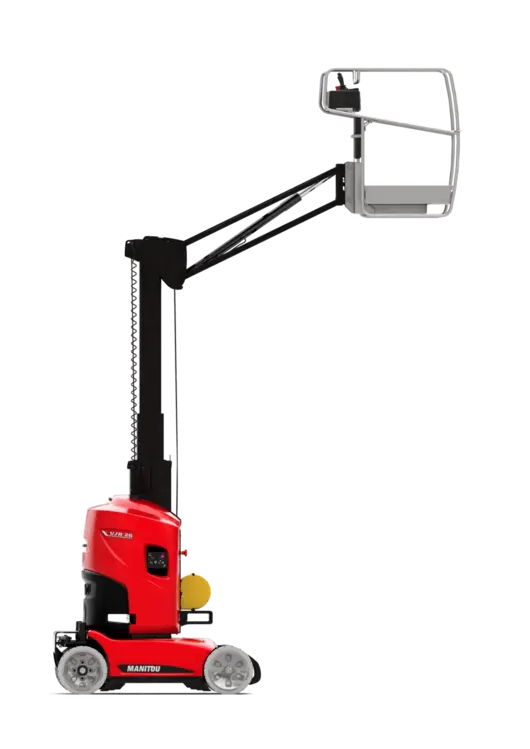

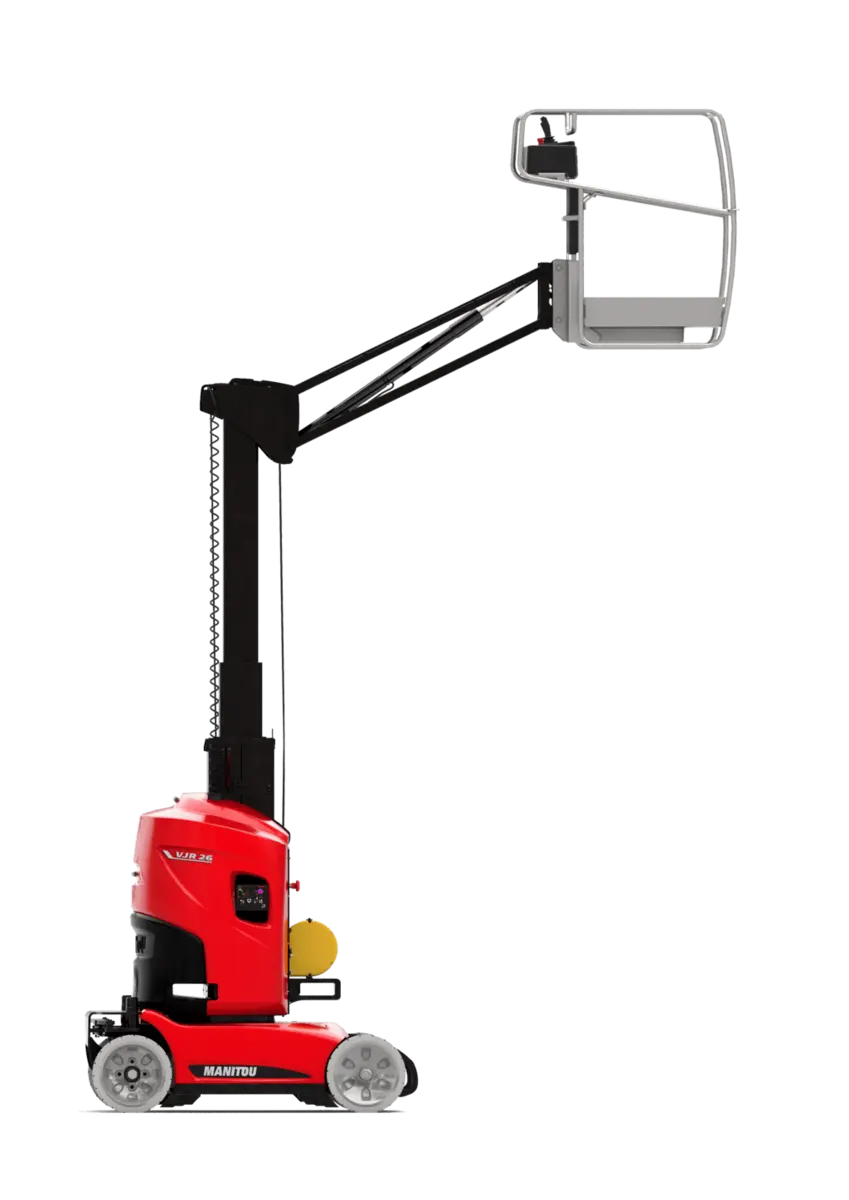

MANITOU VJR 26 Vertical Electric Telescopic Mast w/Jib
Have one to sell?
ConditionNew
New
Perform high precision work with the Manitou VJR 26. This electric, compact MEWP can accommodate two operators. Equipped with a perforated floor and a double rail, the workplatform is ideally suited to industrial requirements. Also take advantage of 350 degree rotation for more flexibility and make quicker job placement adjustments as needed. The VJR 26 brings you comfort and security regardless of your business constraints. The simplified maintenance of the equipment ensures excellent performance throughout its life.
Capacities
Floor height (access) 1 ft 8 in
Platform height 25 ft 9 in
Max. outreach 10 ft 4 in
Overhang 21 ft 11 in
Pendular arm rotation (top / bottom) +58 ° / -56 °
Platform capacity 441 lb
Number of people (indoor / outdoor) 2 / 1
Weight and dimensions
Platform weight* 5842 lb
Platform dimensions (length x width) 3 ft 8 in x 3 ft 1 in
Overall length 9 ft 2 in
Overall width 3 ft 3 in
Overall height 6 ft 6 in
Jib length 4 ft 9 in
External turning radius 6 ft 10 in
Ground clearance under pothole protection 1 in
Ground clearance at centre of wheelbase 4 in
Wheelbase 3 ft 11 in
Performances
Drive speed - stowed 3 mph
Drive speed - raised 0.40 mph
Gradeability 25 %
Permissible leveling 2 °
Wheels
Standard tires 16.5-11 1/4 / 406 x 127 mm
Drive wheels (front / rear) 0 / 2
Steering wheels (front / rear) 2 / 0
Braking wheels (front / rear) 0 / 2
Engine/Battery
Electric Pump 3 kW
Number of hydraulic pump / Capacity of hydraulic pump 2 x 0.26 in³
Battery voltage 24 V
Battery capacity 250 Ah
On-board charger (V / A) 24 V / 30 mA
Miscellaneous
Number of cycles with STD Battery (HIRD) 29
Ground Pressure 171 PSI
Hydraulic Pressure 2031 PSI
Hydraulic oil tank capacity 6 US gal
Vibration on hands/arms < 0.50 m/s²
Standards compliance
This machine is in compliance with:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
