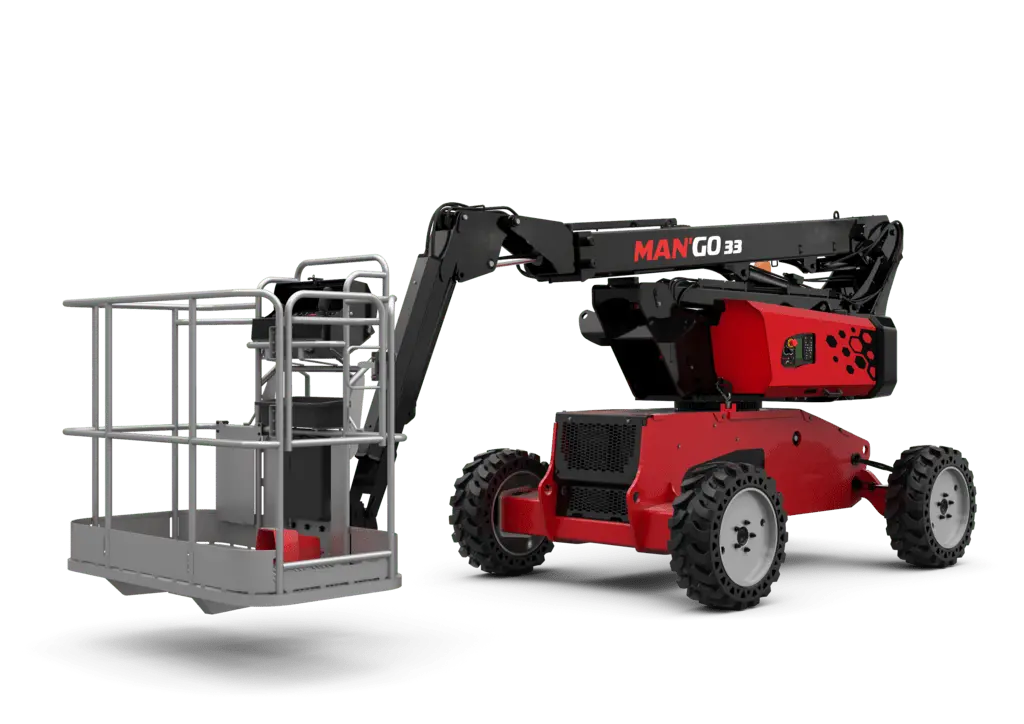

MANITOU MAN'GO 33 Articulated Diesel
Have one to sell?
ConditionNew
New
The MAN'GO 33 is one of the most compact aerial offroad solutions offering by Manitou. Light and handy, this unit helps achieve effective heights, nomatter the space contraints within the jobsite area. The MAN'GO 33 is distinguished by its high compactness, turret rotation of 350 degrees, and its quick lift arms. For your comfort and safety, the MAN'GO 33 is equipped with a galvanized platform. It also works well in all-terrain conditions thanks to its high ground clearnance and ability to operate in 4-wheel drive.
Capacities
Working height 39 ft 1 in
Floor height (access) 1 ft 4 in
Platform height 32 ft 6 in
Max. outreach 21 ft 11 in
Overhang 15 ft 9 in
Pendular arm rotation (top / bottom) +64 ° / -70 °
Platform capacity 500 lb
Turret rotation 350 °
Platform rotation (right / left) 70 ° / 66 °
Number of people (indoor / outdoor) 2 / 2
Weight and dimensions
Platform weight* 9149 lb
Platform dimensions (length x width) 4 ft 11 in x 3 ft 3 in
Overall length 18 ft 1 in
Overall width 5 ft 11 in
Overall height 6 ft 7 in
Overall length (stowed) 14 ft 9 in
Overall height (stowed) 8 ft 2 in
Jib length 4 ft 9 in
Counterweight Oversize / Reach 7 in
External turning radius 13 ft 6 in
Ground clearance at centre of wheelbase 1 ft 1 in
Wheelbase 6 ft 7 in
Performances
Drive speed - stowed 3 mph
Drive speed - raised 0.62 mph
Gradeability 45 %
Permissible leveling 4 °
Wheels
Tires type Super Elastic Solid Cushion
Standard tires 28 x 10 in / 720 x 240 mm
Drive wheels (front / rear) 2 / 2
Steering wheels (front / rear) 2 / 0
Braking wheels (front / rear) 2 / 2
Engine/Battery
Engine brand / model Kubota - D1105-E4B
Engine norm Interim Tier 4, Stage IIIA, Stage V
I.C. Engine power rating / Power 24.80 Hp / 18.50 kW
Miscellaneous
Ground Pressure 218 PSI
Hydraulic Pressure 5802 PSI
Hydraulic oil tank capacity 16 US gal
Fuel tank 14 US gal
Vibration on hands/arms < 0.76 m/s²
Daily consumption ** 1 US gal
Standards compliance
This machine is in compliance with:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
