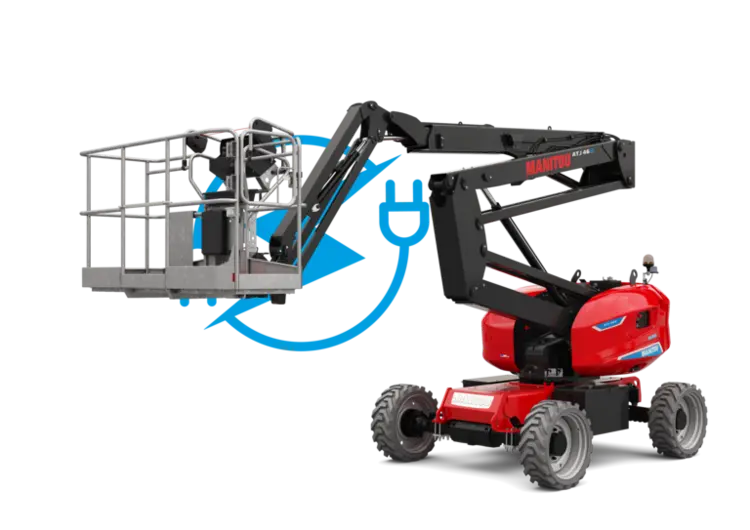

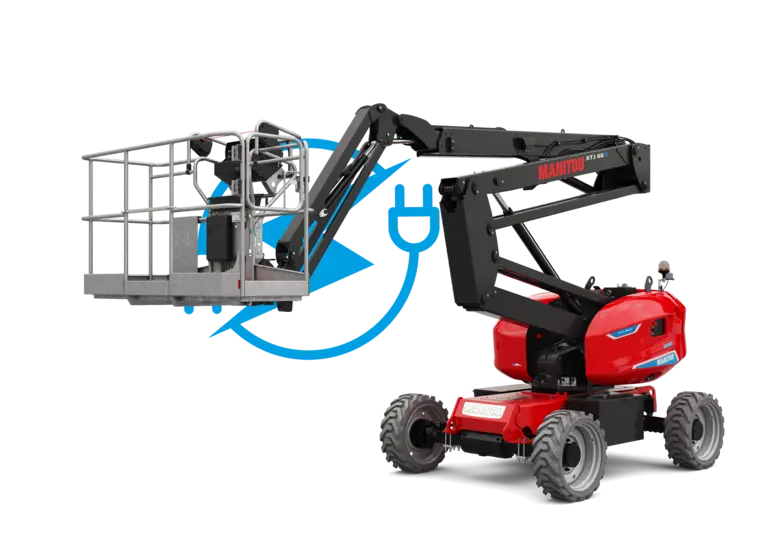

MANITOU ATJ 46 e Articulated Series 2 Electric
Have one to sell?
ConditionNew
0 available
New
Evolve easily in the most harsh environments with ATJ 46 e aerial work platform 100% electric. Equipped with an all-terrain chassis, reinforced structure and a fully galvanized basket, this powerful model is ideal for working safely on all types of soils, including the roughest. High reliability, this units workplatform offers excellent performance and is ideal for the toughest conditions of use. Ensure comfort and safety for your operators with the exceptional performance of the ATJ 46 e articulated boom and access all your outdoor elements located in height.
Capacities
Working height 52 ft 7 in
Floor height (access) 1 ft 6 in
Platform height 46 ft
Max. outreach 26 ft 7 in
Overhang 24 ft 5 in
Pendular arm rotation (left / right) 90 ° / 90 °
Pendular arm rotation (top / bottom) +65 ° / -59.50 °
Platform capacity 551 lb
Turret rotation 350 °
Platform rotation (right / left) 90 ° / 90 °
Number of people (indoor / outdoor) 2 / 2
Weight and dimensions
Platform weight* 13713 lb
Platform dimensions (length x width) 6 ft 11 in x 2 ft 6 in
Overall length 21 ft 4 in
Overall width 7 ft 7 in
Overall height 7 ft 10 in
Overall length (stowed) 14 ft 8 in
Overall height (stowed) 9 ft 1 in
Counterweight offset (turret at 90°) 2 ft 9 in
Counterweight Oversize / Reach 10 in
External turning radius 12 ft 4 in
Ground clearance at centre of wheelbase 1 ft 2 in
Wheelbase 7 ft 7 in
Performances
Drive speed - stowed 3 mph
Drive speed - raised 0.43 mph
Gradeability 45 %
Permissible leveling 5 °
Wheels
Tires type Foam-filled
Standard tires 834 x 298 mm
Drive wheels (front / rear) 2 / 2
Steering wheels (front / rear) 2 / 2
Braking wheels (front / rear) 0 / 2
Engine/Battery
Battery voltage 48 V
Battery nominal voltage / capacity 48 V / 480 Ah
Battery energy 23 kWh
On-board charger (V / A) 48 V / 60 A
Miscellaneous
Ground Pressure 189 PSI
Hydraulic Pressure 3481 PSI
Hydraulic oil tank capacity 6 US gal
Noise to environment (LwA) < 98 dB
Standards compliance
This machine is in compliance with:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
