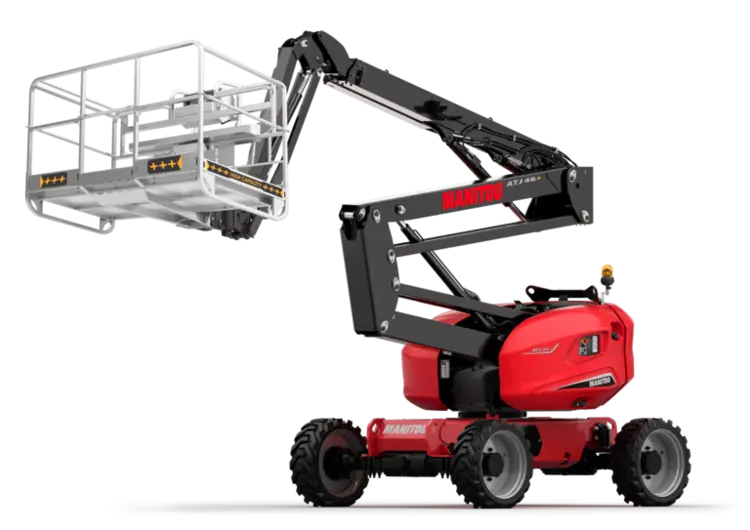

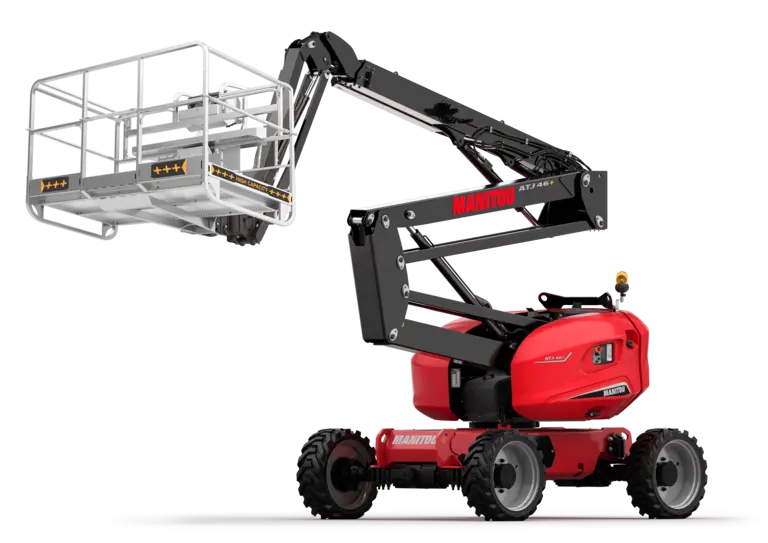

MANITOU ATJ 46+ Articulated Series 2 Diesel
Have one to sell?
ConditionNew
0 available
New
Enjoy the handling performance of the ATJ 46+ high capacity aerial workplatform. Thanks to its compact structure, all-terrain design and high ground clearance, this MEWP has excellent performance on uneven surfaces with the ability to work in cramped, difficult to access areas. The extra capacity in the workplatform of the ATJ 46+ is designed to fit 3 operators. Increased operator comfort is provided by the large spacious workplatform, ergonomic driving position and excellent visibility of the loads and the jobsite environment. Make smoother movements and increase productivity with the ATJ 46+ articulated aerial workplatform!
Capacities
Working height 53 ft 2 in
Floor height (access) 1 ft 3 in
Platform height 46 ft 7 in
Max. outreach 26 ft 4 in
Overhang 24 ft 11 in
Pendular arm rotation (top / bottom) +66.50 ° / 65.80 °
Platform capacity 899 lb
Turret rotation 360 °
Platform rotation (right / left) 90 ° / 90 °
Weight and dimensions
Platform weight* 16535 lb
Platform dimensions (length x width) 7 ft 7 in x 2 ft 11 in
Overall length 23 ft 3 in
Overall width 8 ft
Overall height 8 ft 1 in
Overall length (stowed) 16 ft 1 in
Overall height (stowed) 9 ft 8 in
Counterweight offset (turret at 90°) 6 in
External turning radius 13 ft 5 in
Ground clearance at centre of wheelbase 1 ft 4 in
Wheelbase 7 ft 3 in
Performances
Drive speed - stowed 3 mph
Drive speed - raised 0.62 mph
Gradeability 45 %
Wheels
Tires type Foam-filled
Standard tires 36 x 15 D610 / 910 x 370 mm
Drive wheels (front / rear) 2 / 2
Steering wheels (front / rear) 2 / 2
Braking wheels (front / rear) 0 / 2
Engine/Battery
Engine brand / model Kubota - D1105-E4B
Engine norm Tier 4 final
I.C. Engine power rating / Power 24.80 Hp / 18.50 kW
Miscellaneous
Ground Pressure 167 PSI
Hydraulic Pressure 4931 PSI
Hydraulic oil tank capacity 14 US gal
Fuel tank 13 US gal
Noise to environment (LwA) < 98 dB
Standards compliance
This machine is in compliance with:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
