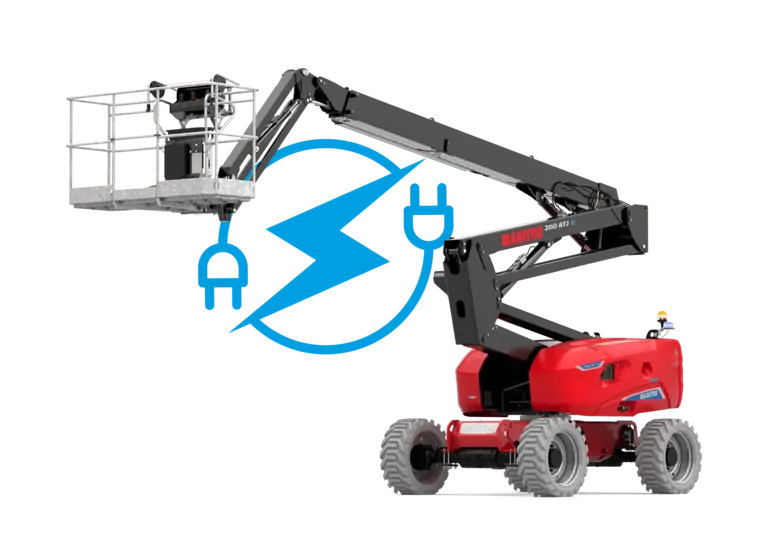

MANITOU ATJ 60 e 4WS CR Articulated Electric
ConditionNew
New
Opt for an ultra-efficient and versatile all-terrain lifting solution with the 100% electric ATJ 60 E 4WS CR platform! Take advantage of its performance to optimize your operations on rough, uneven or muddy terrain or even indoors thanks to its zero-emission energy. Its 4 steering wheels will allow you to move around in the tightest terrain and you will appreciate the time saved thanks to its continuous rotation!
Equipped transmission bridges, this Manitou model has all the features to facilitate your work at height:
spacious and resistant galvanized basket, high ground clearance, active oscillating axle, 4 drive wheels, 4 steering wheels, continuous rotation, unique load capacity on the articulated boom lift market, 4 simultaneous movements...
The articulated ATJ 60 E 4WS CR electric MEWP allows you to work safely up to 65 ft 1 in in height (platform height of 59 ft 1 in), outdoor or indoor thanks to the 100% electric engine and operation without CO2 emissions.
Capacities
Working height 65 ft 7 in
Floor height (access) 1 ft 6 in
Platform height 59 ft 1 in
Max. outreach 38 ft
Overhang 25 ft 11 in
Pendular arm rotation (top / bottom) +65 ° / -60 °
Platform capacity 551 lb
Turret rotation 360 °
Platform rotation (right / left) 90 ° / 90 °
Number of people (indoor / outdoor) 2 / 2
Weight and dimensions
Platform weight* 16601 lb
Platform dimensions (length x width) 6 ft 11 in x 2 ft 6 in
Overall length 27 ft 4 in
Overall width 7 ft 10 in
Overall height 8 ft 1 in
Overall length (stowed) 19 ft 11 in
Overall height (stowed) 9 ft
Counterweight offset (turret at 90°) 2 ft
External turning radius. 12 ft 5 in
Ground clearance at centre of wheelbase. 1 ft 3 in
Wheelbase. 7 ft 7 in
Performances
Drive speed - stowed 3 mph
Drive speed - raised 0.40 mph
Gradeability 40 %
Permissible leveling 4 °
Wheels
Tires type Foam-filled
Standard tires 914 x 370 mm
Drive wheels (front / rear) 2 / 2
Steering wheels (front / rear) 2 / 2
Braking wheels (front / rear) 0 / 2
Engine/Battery
Battery voltage 48 V
Battery nominal voltage / capacity 48 V / 460 Ah
Battery energy 22 kWh
On-board charger (V / A) 48 V / 60 A
Miscellaneous
Ground Pressure 160 PSI
Hydraulic Pressure 3481 PSI
Hydraulic oil tank capacity 6 US gal
Noise to environment (LwA) < 98 dB
Standards compliance
This machine is in compliance with:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
