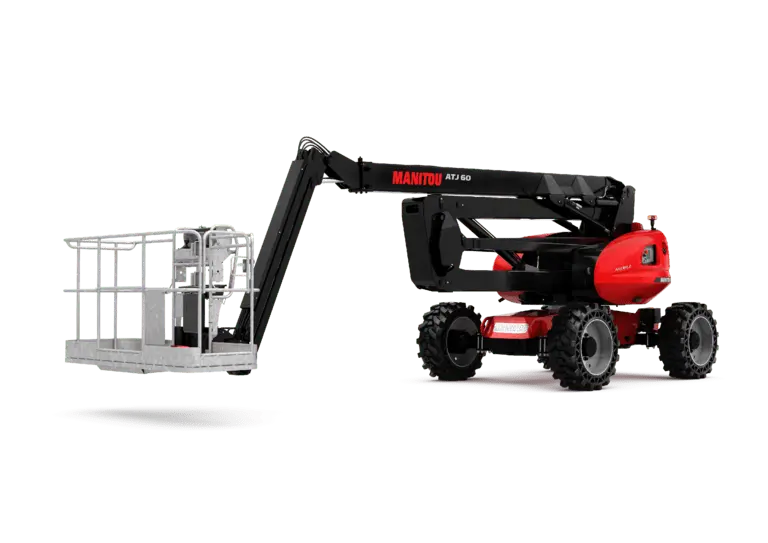

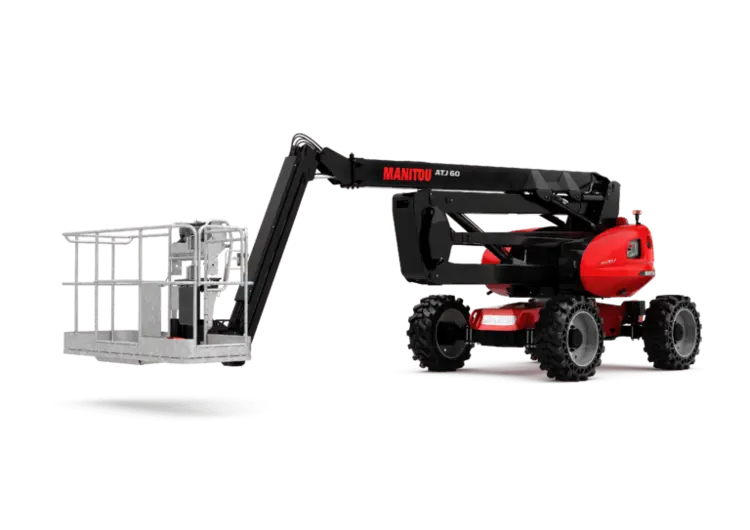

MANITOU ATJ 60 RC Articulated Diesel
Have one to sell?
ConditionNew
0 available
New
Looking for a compact, all-terrain MEWP solution? Then the ATJ 60 is the solution for you! With its 60 ft 2 in max platform height, articulated arm and 360 degree continuous rotation, it allows you the ability to work in the most remote and difficult to access areas. To ensure safety, the ATJ 60 has a smooth double basket, an operator presence pedal and a negative braking system. The design of the chassis is well-suited for off-road use, whatever the ground conditions, making the ATJ 60 an ideal aerial lift for all your outdoor work.
Capacities
Working height 66 ft 10 in
Floor height (access) 1 ft 8 in
Platform height 60 ft 3 in
Max. outreach 39 ft 3 in
Overhang 50 ft
Pendular arm rotation (bottom) +66 °
Platform capacity 500 lb
Turret rotation 360 °
Platform rotation (right / left) 90 ° / 90 °
Number of people (indoor / outdoor) 2 / 2
Weight and dimensions
Platform weight* 22267 lb
Platform dimensions (length x width) 6 ft 11 in x 2 ft 7 in
Overall length 27 ft 8 in
Overall width 7 ft 10 in
Overall height 8 ft 11 in
Overall length (stowed) 20 ft 5 in
Overall height (stowed) 9 ft 3 in
Counterweight offset (turret at 90°) 4 in
Counterweight Oversize / Reach 4 in
Internal turning radius / External turning radius 4 ft 2 in/12 ft 10 in
Ground clearance at centre of wheelbase 1 ft 5 in
Wheelbase 7 ft 10 in
Performances
Drive speed - stowed 3 mph
Drive speed - raised 0.62 mph
Gradeability 40 %
Wheels
Tires type Solid Tires Cured-On
Standard tires 40 x 14 in / 1025 x 365 mm
Drive wheels (front / rear) 2 / 2
Steering wheels (front / rear) 2 / 2
Braking wheels (front / rear) 0 / 2
Engine/Battery
Engine brand / model Kubota - D1803-CR-TIE4B
I.C. Engine power rating / Power 42.90 Hp / 32.80 kW
Miscellaneous
Ground Pressure 300 PSI
Hydraulic Pressure 4931 PSI
Hydraulic oil tank capacity 21 US gal
Fuel tank 21 US gal
Noise to environment (LwA) < 102 dB
Vibration on hands/arms < 0.50 m/s²
Standards compliance
This machine is in compliance with:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
