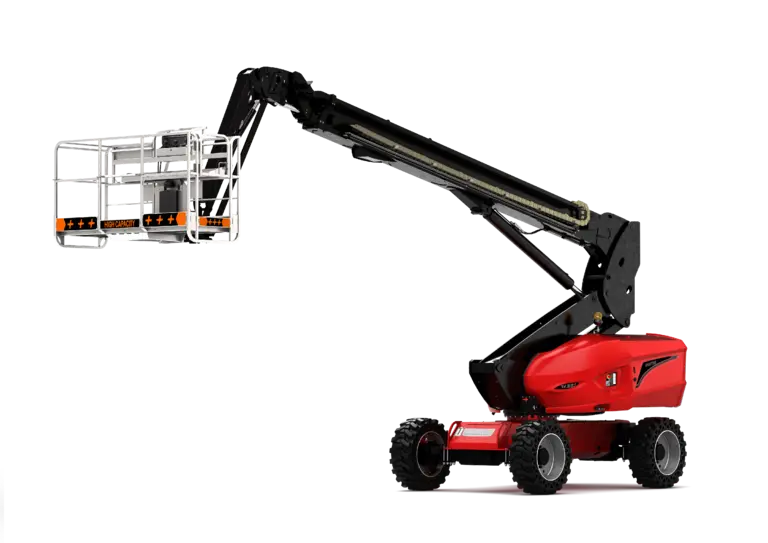

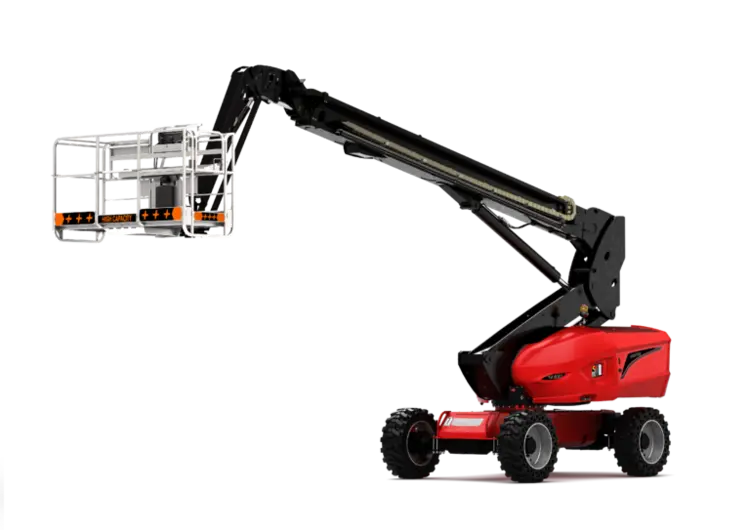

MANITOU TJ 80+ Telescopic Diesel
Have one to sell?
ConditionNew
New
Take advantage of the performance of the TJ 80+ telescopic MEWP! This latest aerial work platform meets all your requirements in terms of off-road capability, strength, power and security. With the telescopic mast and compact structure of the machine, you can work easily in the tightest spaces. The advantages of the TJ 80+ make it an ideal lifting solution to work daily on the jobsite: robust design, continuous 360 degree rotation, 4 wheel steering, transmission bridges, extra platform capacity of 899 lb ... Optimize your work at height and improve productivity each day!
Capacities
Working height 84 ft 11 in
Floor height (access) 1 ft 4 in
Platform height 78 ft 5 in
Max. outreach 64 ft 8 in
Pendular arm rotation (top / bottom) +70 ° / -63 °
Platform capacity 899 lb
Turret rotation 360 °
Platform rotation (right / left) 90 ° / 90 °
Number of people (indoor / outdoor) 3 / 3
Weight and dimensions
Platform weight* 35946 lb
Platform dimensions (length x width) 7 ft 7 in x 2 ft 11 in
Overall length 35 ft 7 in
Overall width 8 ft 2 in
Overall height 8 ft 11 in
Overall length (stowed) 25 ft 10 in
Overall height (stowed) 9 ft 2 in
Jib length 7 ft 10 in
Counterweight offset (turret at 90°) 4 ft 8 in
Counterweight Oversize / Reach 4 ft 8 in
External turning radius 14 ft 3 in
Ground clearance at centre of wheelbase 1 ft 4 in
Wheelbase 9 ft 2 in
Performances
Drive speed - stowed 3 mph
Drive speed - raised 0.50 mph
Gradeability 37.50 %
Permissible leveling 4 °
Wheels
Tires type Solid Tires Cured-On
Standard tires 40 x 14 in / 1025 x 365 mm
Drive wheels (front / rear) 2 / 2
Steering wheels (front / rear) 2 / 2
Braking wheels (front / rear) 2 / 2
Engine/Battery
Engine brand / model Kubota - D1803-CR-TIE4B
Engine norm Tier 4
I.C. Engine power rating / Power 49.60 Hp / 37 kW
Miscellaneous
Ground Pressure 309 PSI
Hydraulic Pressure 5802 PSI
Hydraulic oil tank capacity 25 US gal
Fuel tank 19 US gal
Vibration on hands/arms < 0.50 m/s²
Standards compliance
This machine is in compliance with:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
