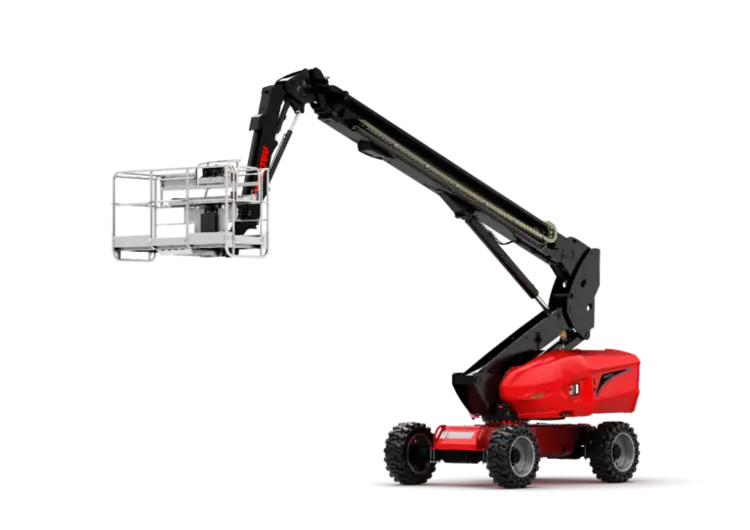

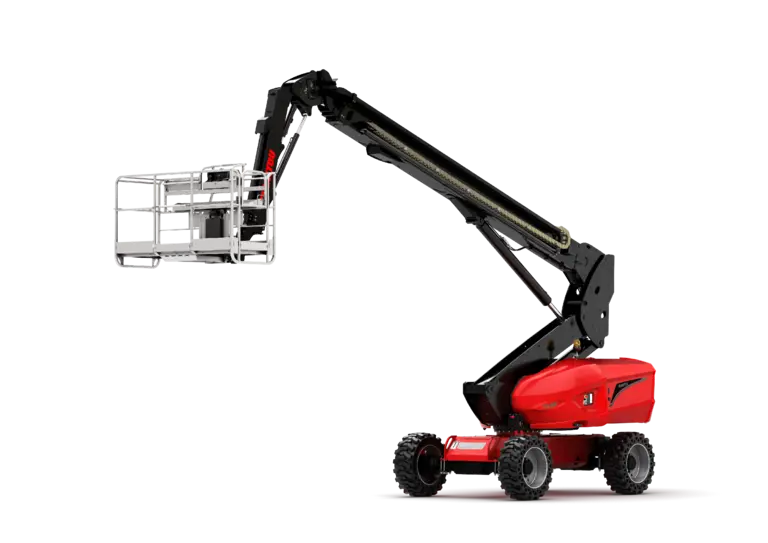

MANITOU TJ 85 Telescopic Diesel
Have one to sell?
ConditionNew
0 available
New
Take advantage of the innovative features of the TJ 85 telescopic boom work platform everyday! This unit has a platform height of 84 ft 6 in making it an ideal choice to carry out your handling and maintenance operations in high to reach areas. The TJ 85 is able to accommodate 3 operators as it is equipped with a large workplatform, perforated floor, and a structure with the ability to pivot allowing for rapid movements. Its off-road capability makes it a lift solution that can go on all types of soils, including the roughest. Improve productivity, and work safely thanks to the performance of our latest generation telescopic workplatform.
Capacities
Working height 91 ft
Floor height (access) 1 ft 7 in
Platform height 84 ft 5 in
Max. outreach 70 ft 4 in
Pendular arm rotation (top / bottom) +56.80 ° / -62 °
Platform capacity / capacity (maximum) 529 lb / 772 lb
Turret rotation 360 °
Platform rotation (right / left) 90 ° / 90 °
Number of people (indoor / outdoor) 2 / 3
Weight and dimensions
Platform weight* 36350 lb
Platform dimensions (length x width) 7 ft 7 in x 2 ft 11 in
Overall length 37 ft 3 in
Overall width 8 ft 2 in
Overall height 8 ft 11 in
Overall length (stowed) 26 ft 7 in
Overall height (stowed) 8 ft 11 in
Jib length 12 ft 6 in
Counterweight offset (turret at 90°) 4 ft 8 in
Counterweight Oversize / Reach 4 ft 9 in
External turning radius 14 ft 3 in
Ground clearance at centre of wheelbase 1 ft 4 in
Wheelbase 9 ft 2 in
Performances
Drive speed - stowed 3 mph
Drive speed - raised 0.50 mph
Gradeability 37.50 %
Wheels
Tires type Solid Tires Cured-On
Standard tires 40 x 14 in / 1025 x 365 mm
Drive wheels (front / rear) 2 / 2
Steering wheels (front / rear) 2 / 2
Braking wheels (front / rear) 2 / 2
Engine/Battery
Engine brand / model Kubota - D1803-CR-TIE4B
I.C. Engine power rating / Power 49.60 Hp / 37 kW
Miscellaneous
Ground Pressure 309 PSI
Hydraulic Pressure 5802 PSI
Hydraulic oil tank capacity 25 US gal
Fuel tank 19 US gal
Sound level at platform 0.50 dB
Noise to environment (LwA) < 102 dB
Vibration on hands/arms < 0.50 m/s²
Standards compliance
This machine is in compliance with:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
