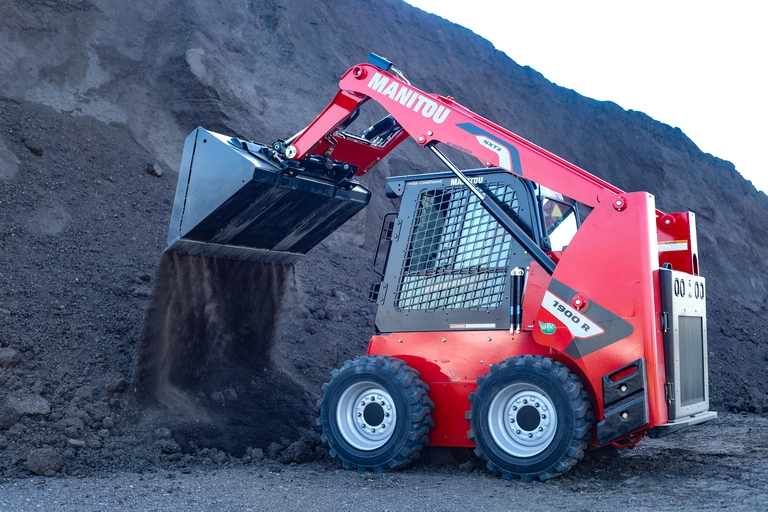

Manitou 1900R NXT2

Operating Capacity At 50% Tipping Load 1900 lb
Operating Weight 6995 lb

Engine Yanmar 69 hp
Max. torque / Engine rotation 178 ft/lbs / 1625 rpm
Power source Diesel

Overall Operating Height - Fully Raised 153 in
Height to Hinge Pin – Fully Raised 119 in
Overall Height to top of ROPS 77 in
Dump angle at full height 38 °
Dump height 94 in
Overall length with bucket 128 in
Dump reach - Full height 23 in
Rollback at ground 28 °
Rollback Angle at Full Height 99 °
Seat to ground height 36 in
Wheelbase 42 in
Overall width less bucket 62 in
Bucket Width 66 in
