New FELCO INDUSTRIES Straddle Wheel Compactors | Wheel Compactor

Description

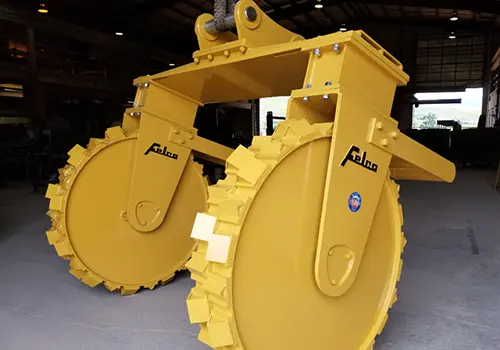

Felco Straddle Wheel Compactors are designed to efficiently and uniformly backfill large diameter pipe. Within the rigid exterior frames, Felco uses our proven Sealed Journal Bearing System so the strength of the axle assemblies, combined with their maintenance-free design (no greasing) provides superior performance and less downtime due to its ability to withstand heavy use and is supported by our industry best 5-YEAR LIMITED WARRANTY.

Straddle Wheel Compactors are “semi-custom” for your specific needs to match up with pipe diameter and project requirements. Distance between the wheels can be manual adjusted, and we also can offer hydraulic width-adjusting systems.

Features include:

• Internal width between the wheels can be specified to your needs. We typically build them with some adjustability. Loosen 4 bolts per wheel, slide the leg assembly to the desired position, and re-tighten.
• Wheel diameter can be modified to most anything you want. We typically try to keep it below trucking width limits so we don’t run into additional shipping costs, but past that, it can be whatever you want.
• We recommend a 12” compactor wheel width because we can utilize our sealed journal bearing axles. This gets you no daily maintenance and a 5-YEAR LIMITED WARRANTY on the axle. Narrower wheel width is possible, but we must drop to a flange bearing. This requires daily greasing and usually only a 90 warranty from the manufacturer.
• We have optional, removable spacer blocks to get the wheels deeper into the trench from the beam. We also offer optional, removable “kick stands” that keep the ear assembly up off the ground if you are utilizing a quick coupler.
• Lastly, all our designs have a bolt-on ear assembly so the attachment can be swapped between machines without too much difficulty. You only need a second ear plate.
