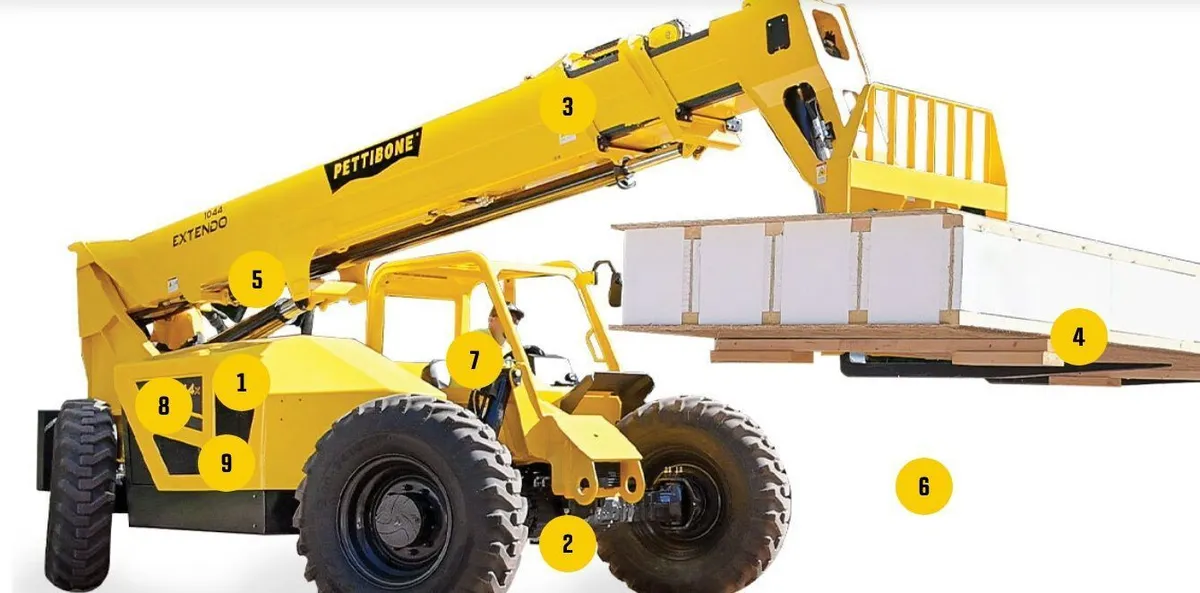

New PETTIBONE EXTENDO 1044X | Telehandler

Description

Providing an impressive maximum load capacity of 10,000 pounds without the need for outriggers, the Extendo 1044X telehandler offers exceptional jobsite efficiency.

Maximum load capacity of 10,000 pounds
Maximum lift height of 44 feet, 6 inches
Maximum forward reach of 30 feet
Maximum travel speed of 15.2 mph
Single lift cylinder provides operators with clear sight lines for maximum visibility
Boom’s compression tilt design allows for a smaller bore cylinder with the same tilt force
Single extension chain eliminates the need to balance dual chains

A standard feature for 2 years on X-Series telehandlers, X-Command provides access to the real-time status of your Pettibone machine:

• Remotely monitor equipment location and data: Engine hours, fuel usage, DEF level, battery voltage and much more.
• Identify minor mechanical issues before they become serious.
• Minimize downtime through remote diagnosis.
• Get reports and notifications via web browser or mobile app.
• Increase ROI by ensuring maintenance is up-to-date, and by eliminating certain field service calls.
• Use current, accurate machine info to plan ahead on fleet maintenance.

Engine
The 74-horsepower Deutz Tier 4 Final diesel engine features a DOC muffler and requires no diesel exhaust fluid (DEF). Side pod mounting offers easy service access while allowing excellent curbside visibility and ground clearance.

Drivetrain & Axles
Drivetrain and axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed.
• Dana 212 Series high steer axles provide excellent tractive effort.
• Tight steer angle capability provides efficient turning radius.
• Dana VDT12000 Powershift transmission offers 3 speeds, forward and reverse.
• Full time 4-wheel-drive with limited-slip front axle differential.

Boom Construction
Newly designed boom with formed boom plates offers greater strength with less weight.
• Boom deflection minimized for better control and accuracy placing loads.
• Boom overlap nearly doubled to provide smoother operation and reduce contact forces on wear pads.
• Fastener-less wear pads simplify service.
• Bottom-mounted external extend cylinder significantly reduces load on wear pads; cylinder location also provides better service access to internal boom components.
• Compression tilt design allows for a smaller bore cylinder with same tilt force.
• Single extension chain eliminates the need to balance dual chains.

Hydraulics
The Extendo's hydraulic circuit delivers exceptional controllability, efficiency and cycle speeds.
• Cylinder cushioning dampens the end of strokes – both extending and retracting – to prevent hard, jarring stops and avoid both wear-and-tear and potential load spills.
• Single lift cylinder provides operator with clear sight lines.
• Twin lines for tilt and auxiliary plumbing.

Steel Tanks
Damage-resistant, all-steel fuel and hydraulic tanks. Fuel tank provides ample fuel volume for a full day's work at 100% load.

Operator Station
The operator cab includes ergonomic seat, pedal, joystick and steering wheel positions. Available as an open canopy or enclosed cab, it features an all-steel interior with water-resistant components for easy washdown.
• New analog/LCD gauge cluster.
• Enhanced climate control system.
• Split door design allows upper half to lock in the open position.
• Flat, bolt-in glass can easily be removed or replaced.
• Openable rear window improves air flow while keeping cab dry.
• Lockable storage area under seat for manual, gloves and tools.

Electrical
• Split-system electrical panels allow for easier service of individual circuits.
• Heavy-duty bright LED lighting.
• Weather-sealed connections.

Service
• Easy access to all filters and fluid level indicators.
• Lockable fuel-fill in clean, accessible location.
• Inside of boom easily accessible for service.
• Non-tensioned boom hoses offer long service life.
