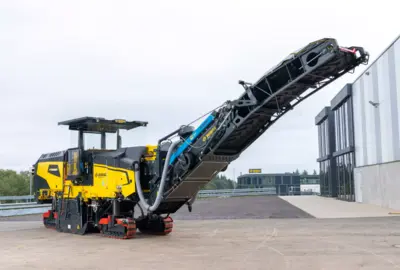

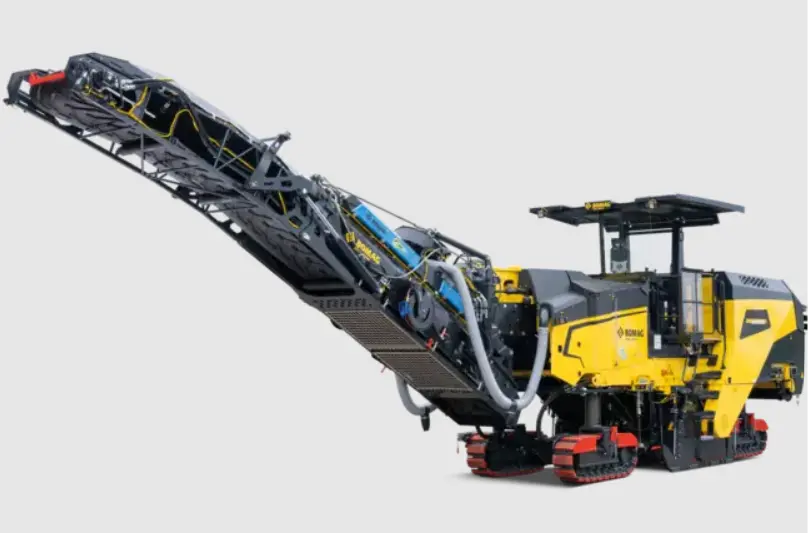

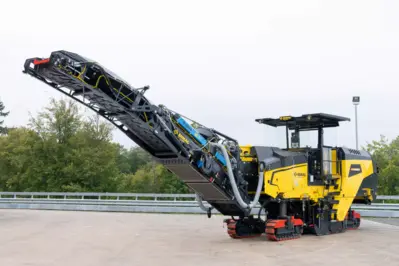

BM 2000/65 large planer: Simply revolutionary in the 2-metre class.
Have one to sell?
ConditionNew
New
Leading the way in weight, efficiency and comfort.
BOMAG's BM 2000/65 large planer sets new standards in the 2-metre class - it is even lighter, more manoeuvrable, more cost-effective and particularly easy to operate.

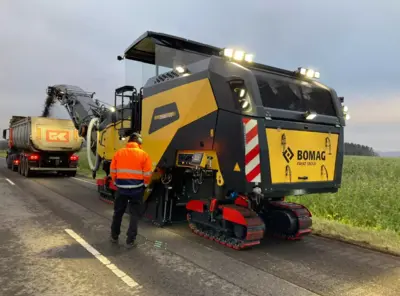

The cold planer's clever design offers the operator excellent all-round visibility. A clear view of the milling edge to the front enables extremely precise milling in the track. Its slim tail improves rear visibility and hence working safety.
The BM 2000/65's sleek design results in a turning circle of only 1.7 m, making the planer highly manoeuvrable. Milling in tight bends or roundabouts is no problem with the BM 2000/65.

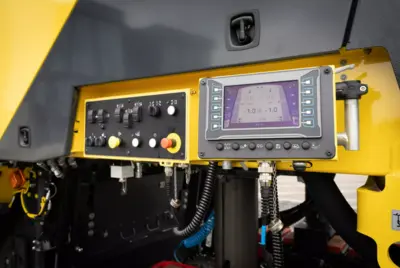

When milling different road surfaces, asphalt and concrete selectively, operation is intuitive. BOMAG's operating concept focuses on short navigation steps and only a few submenus. And servicing the planer is made even easier by straightforward access to all maintenance points.
Fields of application

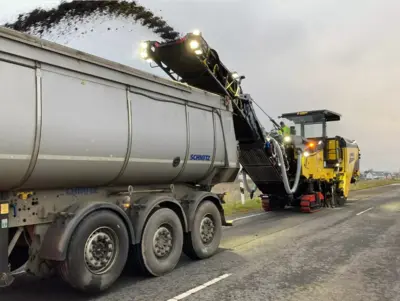

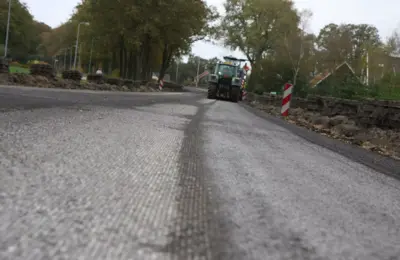

Asphalt milling is a method for removing specified layers of asphalt road pavements.
BOMAG cold milling machines are designed for selective milling of lane and ground linings made up of a wide range of asphalt and concrete compounds. The different models are particularly suited for repairs or the complete removal of motorways and major federal roads, and for rural roads and inner-city work including work on roundabouts. With different working and milling depths, large areas can be removed quickly and completely in one work stage.
Standards
Milling technology
Milling drum LA15 including wear protection on the sides
BOMAG BMS 15 L exchangeable toolholder
3 Milling-Drum-speeds, 100, 112, 130
Proportional adjustable water injection, 0-12 l/min
Automatic water saving device
Levelling, 2 sides + slope
Wear-free, digital Milling depth display
Proportional Milling depth adjustment
Two proportional speeds for Milling- depth-adjustment
Hydraulically operated side-plates with 500 mm (right) and 400 mm (left) stroke
Hydraulically operated front mouldboard
Hydraulically rear mouldboard with adjustable preload-pressure
Right side-plate for fast Drum-exchange
Automatic load-control
Automatic distribution of traction

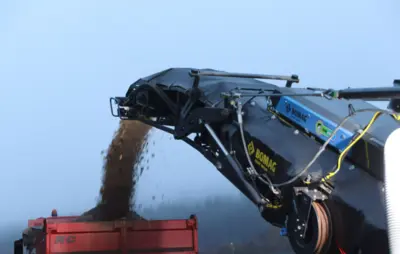

Hydraulically foldable Conveyor with +65° swivel angle
Camera system: 1x discharge belt, 1x on the back
BOMAG Dual Filtration
BOMAG Easy Cut
BOMAG Easy Level
Drive Systems
4 crawler B1 size steerable, front or/and rear
Crab walk
Variable transport speed
Variable operating speed
Mechanical Drum-drive
Operation comfort
Fully vibration-isolated operator-platform
Comfort zones at the standing areas for fatigueless operation
Adjustable dashboards
Standardized self-explanatory, well-arranged dashboards
Large storage at ground level

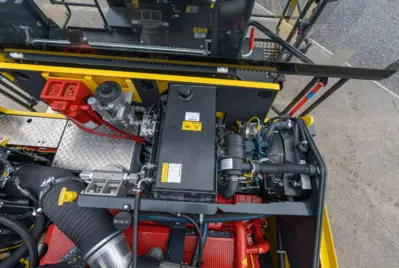

Service- and maintenance-points ergonomic concentrated
Large Storage compartment at the operator platform including 24V plug and flexible layer
Diesel and AdBlue fill comfortable and safely place at the operator station
BOMAG Fast Select for a fast machine operation
Safety & environmental protection
Noise optimized design
Liquid cooled engine following latest emission rules without hot exhaust jet to the back
Integrated working lights
Rotary-beacon
Mirrors
CE-conform safety-package with emergency- stop-switches
Back-up-alarm
Options
Basic machine
Track chains B3 size
Storage compartment for cutting tools on the track chains
Weather protection roof
Plexiglas weather protection for the side railings
Water filling pump
High pressure cleaner
Hose reel
Dust reduction system
ION DUST SHIELD
Auxiliary Drum Drive for easy tool exchange
Compressed air system
Additional motor for auxiliary function & emergency drive function
Additional compartment for cutting tool
Additional working-light, magnet base
Advanced lighting package – additional 142.000 lm
Ballast weights
Special colour
Biodegradable hydraulic oil
Slewable standing support
Vandalism protection
Milling technology
Quick-exchange drum-system
Milling-Drum 2000, BMS 15 L, LA15
Milling-Drum 2200, BMS 15 L, LA15
Milling-Drum 2000, BMS 15 L, LA8
Milling-Drum 2200, BMS 15 L, LA8
POWER DRUM 2000, BMS 15 L, LA23
POWER DRUM 2200, BMS 15 L, LA23
Additional Milling Drum Bearing
Levelling Systems and electronic support
Additional external BOMAG Easy Level Display
2 scanners left & right in front of the milling box
Camera system: 2 additional camera’s, 1x downholder, 1x rear scraper
BOMAG TELEMATIC
